10/700 µs Impulse Voltage Test Generator Transient Voltages Tester
Products Description
IEC 60065 6KV 10/700 μs Impulse Voltage Test Generator
Product information:
This impulse voltage test generator is required by IEC60065:2014 clause 10.2, 13.3.4 a), and IEC 60065:2014 clause 13.3.4 b), 14.2, IEC60950, and etc.
It is used to detect the transient over voltage of the components and the electrical clearance and the creepage distance of audio, video and similar electronic apparatus.
This impulse voltage test generator is a standard lightning wave test device with waveform 10/700 µs. Wavefront time is 10 µs, wave after time is 700 µs, it is a destructive tester. The sample breakdown will produce a spark and acoustic, instrument peak voltage than the no-load voltage is decreased substantially (close to zero), when applying the same voltage in the next test, it will also show the above phenomenon.
Technical Parameters:
Half value of after wave time: 700 µs ± 20 %
Note: the waveform will be shown by an external oscilloscope (oscilloscope should be prepared by user).
Equipment features:
All parameters can be set on the touch screen. After the sample is connected, click "Start Test" to start the test.
Model
SN1104-2
DC high voltage
6kV
Impulse voltage wave
Impulse wavefront time: 10 µs ± 30 %
Instrument internal resistance
40Ω ± 10%
Internal resistance converter box
500Ω - 10% , optional
Peak voltage: 300 V~ 12,500V
0kV~6kV, ± 5%
Impact interval time
30~999s
Impact cycles
1 ~ 9999
Polarity
Positive and negative
Working power source
Match client’s local power supply requirements
Dimension
630mm×600mm×380mm
Weight
30 KG

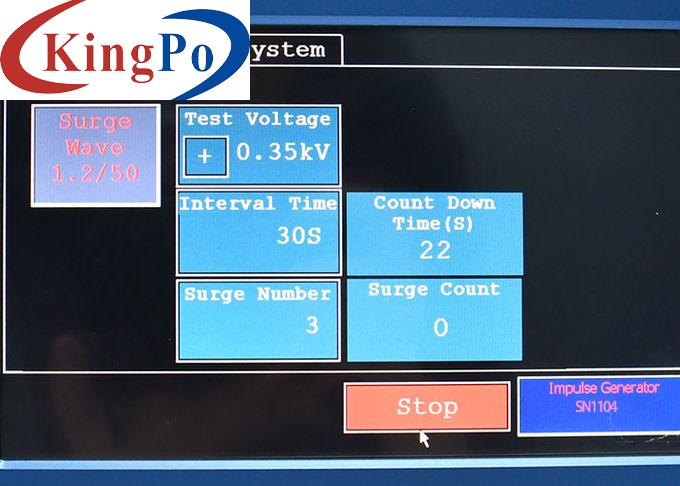

The test interface as shown in the figure below, and the high-voltage warning light flashes intermittently, indicating that the test is in progress. After the test is completed, it will stop automatically.
