20V 100A Automotive Battery Testing Equipment Charge Discharge Capacity Test Independent 4 Channels

Battery Testing Equipment

Products

MOQ:1
Price:Customized
StandardPackaging:Plywood
DeliveryPeriod:1Month
PaymentMethod:T/T,L/C,WesternUnion,MoneyGram
SupplyCapacity:10SetsPerMonth

+86 769 81627526 skype++++ Chat Now

Products Description

Place of Origin：China

Brand Name：KingPo

Certification：Calibration Certificate (Cost Additional)

Model Number：KPBT4004FA-20V100A

Voltage Range：100mV-20V

Min. Discharge Voltage：2.5V

Current Range：0.5 A~100A

Output Power Per Channel：2000W

Channel Per Unit：4

Communication Interface：Ethernet Port

Minimum Order Quantity：1

Price：Customized

Packaging Details：Plywood

Delivery Time：1 Month

Payment Terms：T/T, L/C, Western Union, MoneyGram

Supply Ability：10 Sets Per Month

Highlight：high frequency vibration generator, battery discharge analyzer

Product Description

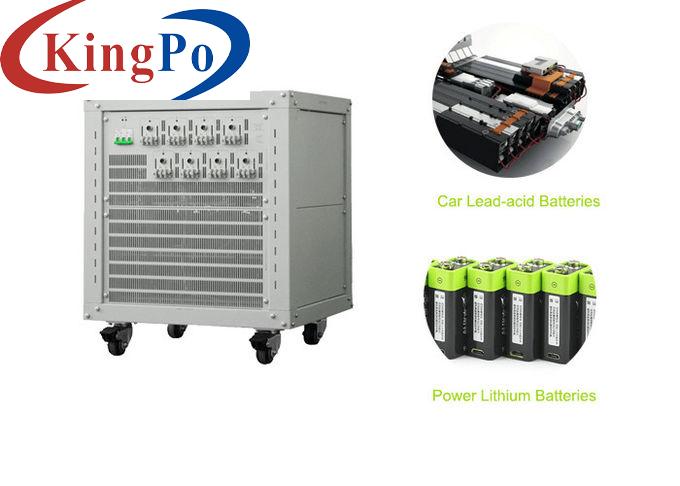

20V 100A Automotive Battery Charge Discharge Capacity Independent 4 Channels Testing Equipment

Overview:

This battery charge discharge testing equipment meets the requirements of lithium ion battery or lead acid battery pulse charge and discharge test, DC internal resistance (DCIR) test, cycle life (Cycle Life) test, rate charge and discharge test. This testing equipment comes with unique software, which can run on computer to achieve romote control and minitor.
This series of battery testing systems are widely used in various research institutions, universities and power battery manufacturers.

Technical Parameters:

Project index		Parameter index
Input Power		AC 380V±10%/50Hz (can be customized)
Resolution		AD:16bit；DA:16bit
Input Resistance		≥1MΩ
Input Power		11139W
Channel Control Feature		Constant current source and constant voltage source adopt independent double closed loop structure
Channel Control Mode		Independent control
Voltage	Voltage Range Per Channel	100mV-20V
	Minimum discharge voltage	2.5V
	Accuracy	± 0.1% of FS
	Stability	± 0.1% of FS
Current	Current Range Per Channel	0.5 A~100A
	Constant voltage cutoff current	0.2A
	Accuracy	± 0.1% of FS
	Stability	± 0.1% of FS
Power	Output Power Per Channel	2000W
Power	Stability	± 0.2% of FS
Time	Current Response Time	Time of current rising to 100A is 20ms
Time	Step Time Range	1~365*24 hours, Time Form Support 00:00:00:000(h, min, s, ms)
Data Recording	Record Condition	Time△t: 100ms
		Voltage△U:40mV
		Current△I: 200mA
	Record Frequency	10Hz
Charge	Charge Mode	Constant current charging, constant voltage charging, constant current and constant voltage charging, constant power charging, constant current and constant voltage of the battery pack
Charge	Cutoff Condition	Voltage, Current, Relative Time, Capacity, -ΔV
Discharge	Discharge Mode	Constant current discharge, constant power discharge, constant resistance discharge
Discharge	Cutoff Condition	Voltage, Current, Relative Time, Capacity, -ΔV
Pulse Mode	Charge mode	Constant current mode, Constant power mode
	Discharge mode	Constant current mode, Constant power mode
	Min. pulse width	500ms
	Number of pulse	Single pulse step supports 32 different pulses
	Continuous switching of charge and discharge	A pulsed step can achieve continuous switching from charge to discharge
	Cutoff condition	Voltage, relative time
DCIR Test	Supports custom point retrieval for DCR calculations
Cycle	Loop Measure Range	1~65535 times
	Max Steps Per Loop	254
	Nested Loop	With nested loop function, max support 3 layers
Protection	Software Protection	Power-down Data Protection
		Off-line Testing Function
		Setting Protection Condition, Setting Parameter: Low Voltage limit, Upper Voltage limit, Low Current limit, Upper Current limit, Delay Time+, Single Cell Difference
		With anti-reverse connection function
Voltage and current detection sampling		Four-wire connection
Noise		<85dB
Database		MySQL Database
A Means of Communication of Upper Machine		TCP/IP Protocol
Data Output		EXCEL2003,2010, TXT
Communication Interface		Ethernet Port
Main Channels No. Per Unit		4
Dimensions		30U chamber, WDH:6006001520(mm)

Equipment Working Environment :

Project index	Parameter index
Working Temperature Range	10℃ ~ 40℃1
Storage Temperature Range	-10℃ ~ 50℃
Working Environment Relative Humidity Range	≤70% RH (No condensation)
Storage Environment Relative Humidity Range	≤80% RH (No condensation)
Auxiliary channel voltage range (optional and customized)	-5V~5V
Auxiliary channel voltage accuracy (optional and customized)	±0.1%ofFS

The number of channels, voltage range, current range and etc. can be customized according client's specific requirements and specimen. Please email or call to KingPo for further assistance.
