3 Stations Power Supply Test Equipment For Electric Lab Button Control
Products Description
Power Supply
Product overview:
The power supply are designed and manufactured according to IEC 60884-1: 2013 Clause 20 &21; IEC60669-1:2007 Clause 18 &19.1. It is applicable for household and similar fixed electrical installations switches and plug sockets breaking capacity and normal operation test. The purpose is assessing whether the switch is able to withstand the normal use of mechanical damage and electrical fatigue damage, and whether the contacts has adhesion phenomenon, long-term closed or disconnected phenomena, to examine whether the test samples excessive worn and have other harmful consequences.

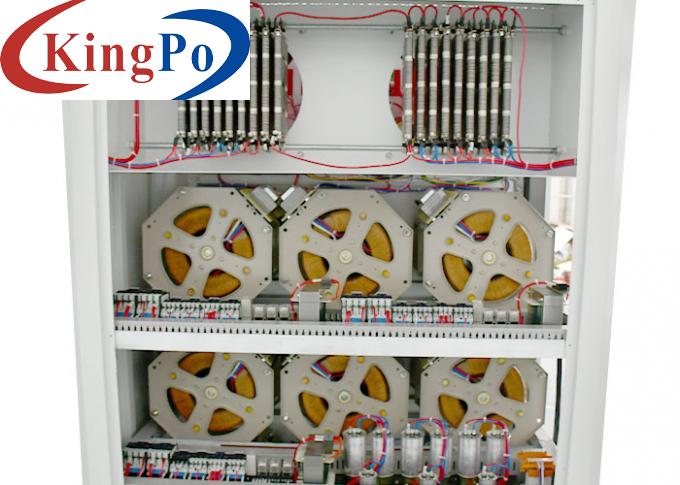

Front top is the operator control panel, the panels are made of high quality aluminum plate, etching sandblasting colored craft, attractive and durable. There are power switch/current/voltage and power/power factor displaying instruments, load power switches, status indicators, start and stop buttons, capacitance switches, load switches and alarms etc. Below corresponds to the output voltage regulation knobs, output current regulation knobs and power factor regulation knobs. The load box has three independent stations, each with resistive, inductive load two in one feature, they are switchable. The interior of the load box is cooled by strong wind convection cooling. At the back of the load box there are wire connecting terminals, the load box outputs current voltage and power during the detection by connecting the wire with the test samples on the mechanical endurance test machine (the mechanical endurance test machine is not included in this machine, suggested to work with our BF2216 or BF2116C).
Technical Parameters:
Power Supply
Three-phase five-wire AC400 ± 10% / 50Hz. Note: must have neutral wire.
Test Station
3 stations, independent output
Electrical Control Method
Button control
Output Voltage
0～300V, accuracy ±0.5%, digital display
Output Current
0～30A, accuracy ±0.5%, digital display
Power Factor
Cosφ1～0.3 inductive, accuracy ±0.5%, digital display
Output Power
0～10KW, accuracy ±0.5%, digital display
Load Type
Resistive, inductive, capacitive three-in-one, can be switchable
Capacitive Load
70uf, 140uf,7.3uf are switchable
Load Output
Optional for each load output and separate load output
Test Times
0~999999 times, can be preset
Load Power Supply Capacity
3*10KVA
Overrun Alarm
Upper limit of output current is 30A, automatically cut off if over 32A
Dimensions & Weight
Approximately:1000×800×1800 (mm) W×D×H, 350kg
