50W 500W Horizontal Vertical Flammability Test Chamber
Products Description
IEC 60695-11-2 Horizontal And Vertical Burning Test Apparatus
Product overview:
This horizontal and vertical burning test apparatus designed and manufactured according to IEC60695-11-2, IEC60695-11-3, IEC60695-11-4, IEC60695-11-10, IEC60695-11-20. It is required by IEC 60065: 2005 and IEC 60065:2014 Clause 20.2.1, 20.2.5 and Annex G.
It simulates the influence of early-stage flame when there is a fire around the electric and electronic products, so that to judge the igniting danger degree. It is mainly used in plastic and other non-metallic material sample, solid material. It is also applicable in the Horizontal, vertical flammability test of the relative combustion characteristic of foam plastics whose density is no-less than 250kg/m according to ISO845 test method.

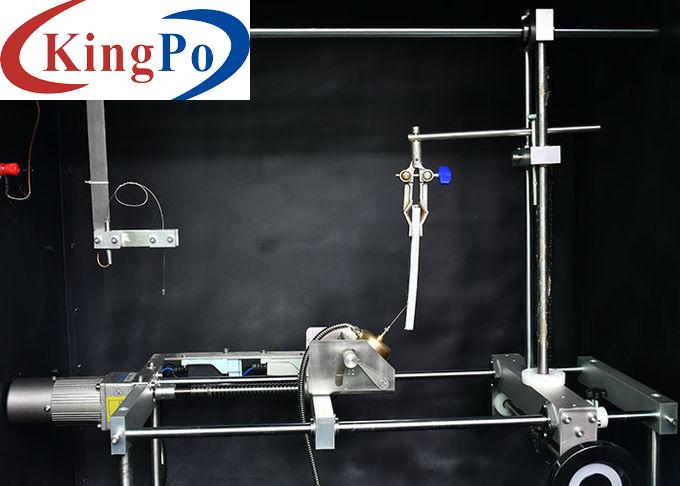

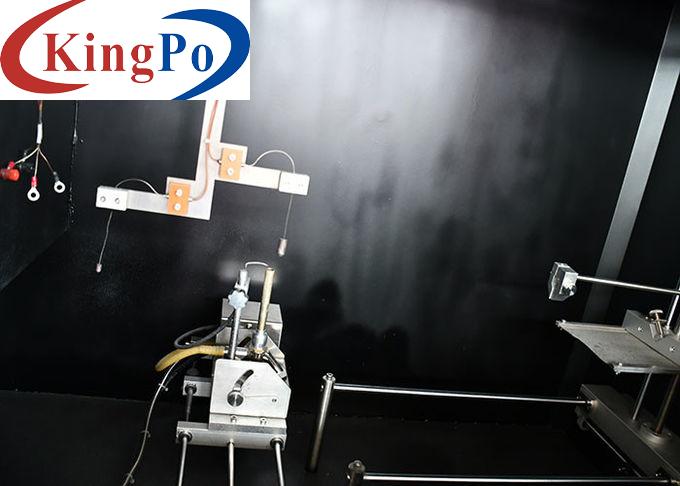

This test equipment adopts integral type inlet ignition system. The combustion time delays 0.1S thus to make sure the sufficient time of gas burning. The test equipment has matte black background, multi-functional flame measure gauge and large observation window. The control system of this test equipment is composed of PLC+ 7” touch screen, with high degree of automation and high precision of parameter display. The appearance of this test equipment is beautiful, the performance is stable and operation is convenient.
Technical parameters:
Imported high quality Bunsen burner, brand: HUMBOLDT
IEC60695-11-3/IEC60695-11-4/10, UL94, etc.
inner diameter:Φ9.5±0.3mm,length:100mm,made of brass
50W:105±5ml/min or 18±1mm
500W:965±30ml/min or 117±3 mm
Adjusted through flow meters
50W:10mm;
500W:125±5 mm
50W: 0°,45°;
500W: 20°
Temperature measuring copper head:
50W:Ф5.5mm±0.01mm, weight before drilling 1.76 ± 0 .01 g
500W:Ф9mm±0.01mm, weight before drilling 10 ± 0 .05g
Distance between the Bunsen burner port to temperature measuring copper block:
50W: 10±1 mm
500W: 55±1 mm

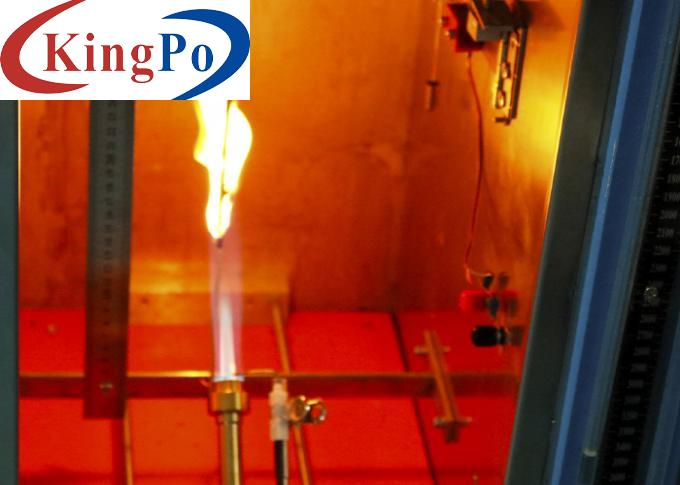

Flame height:
50W: 20±2mm (there is no internal and external flame)
500W: inner flame:40±2mm, outer flame:125±10mm
Temperature rise time from100±2° to 700°±3°:
50W: 44±2 s
500W: 54±2 s
Working voltage
Match client's local power supply requirements
Power/grade
50W and 500W double power switching
Control operation mode
PLC control and 7 inch touch screen, with infrared remote controller
Bunsen burner
Gas pressure
0.1MPa
Gas flow
U type pressure gauge back pressure water column height
Test angle
Flame application time
0-9999X0.1s can be preset
Flame application times
0-9999 times can be preset
Afterflame/Afterglow Time
0-9999X0.1s can be displayed
Test flame calibration
Thermocouple: The American original Omega φ0.5 armour nickel-chromium/nickel aluminum wire K-Thermocouple, temperature resistance 1100°
Lighting
Equip with lighting in the test chamber
Inner chamber and dimension
> 0.75 cube, matte black background, with exhaust fan, dimension:1100*550*1200mm, 135kg
