5V 6A Li-ion Batteies and Cells Life Analyzer High Precision Dual Range Capacity Test Equipment
Products Description
5V 6A Lithium Ion Batteies and Cells Charge Discharge Life Cycle Dual Range Capacity Test Equipment
Overview:
This testing equipment comes with unique software, which can run on computer to achieve romote control and minitor.
Project index
Parameter index
Single Step Time Range≤365*24 h,
Time Form Support 00:00:00.000(h, min, s, ms)
Constant Current Charge, Constant Voltage Charge,
Constant Current and Constant Voltage, ChargeConstant Power Charge
Equipment Working Environment:
Project index
Parameter index
The number of channels, voltage range, current range and etc. can be customized according client's specific requirements and specimen. Please email or call to KingPo for further assistance.

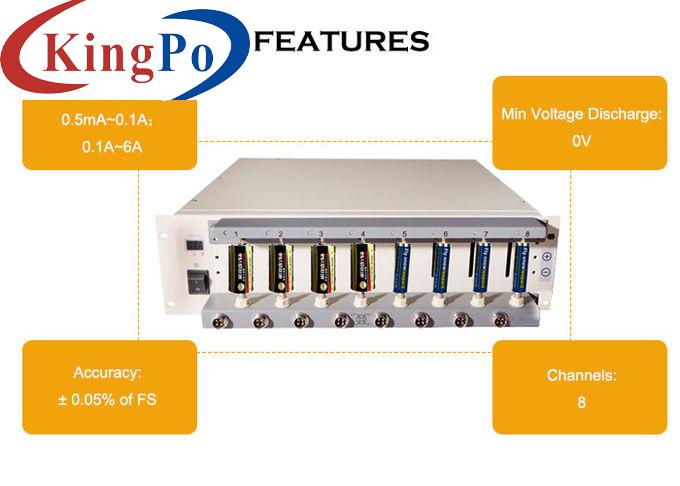

This Li-ion battery charge discharge testing equipment meets the requirements of lithium oon battery and cell pulse charge and discharge test, DC internal resistance (DCIR) test, cycle life (Cycle Life) test, rate charge and discharge test. It has two current range: range 1: 0.5mA~0.1A; Range 2: 0.1A~6A, which can test the small capacity li-ion batteries and the test result are more accuracy.
This series of battery testing systems are widely used in various research institutions, universities and power battery manufacturers.
Standards & Clauses:
Conforms to IEC62133-1/-2:2017 clause 7.1, 7.2.1, 7.3.8, 7.3.9, IEC62133-1/-2:2012 clause8.1.1, 8.1.2, 8.2.1, 8.3.6, 8.3.7 IEC60086-4 clause 6.5.8 6.5.9 IEC60622, IEC60623, IEC 60086-1, IEC61951, IEC61960
Technical Parameters:
Input Power
AC220V ±10% / 50Hz
resolution
AD: 16bit; DA: 16bit
Input Resistance
≥1MΩ
Input Power
425W
Channel Features
Constant Current Source and Constant Voltage Source with Independent pairs of Closed-loop Structure
Channel Control Mode
Independent Control
Voltage
Constant voltage control range
25mV-5V
Min Voltage Discharge
0V(with cylinder spring clamp)
Accuracy
± 0.05% of FS
Stability
± 0.05% of FS
Current
Output of per channel
Range1: 0.5mA~0.1A; Range2: 0.1A~6A
Accuracy
± 0.05% of FS
Cut-off current of CV
Range1: 0.2mA; Range2: 12mA
Stability
± 0.05% of FS
Power
Per Channel Output Power
30W
Stability
± 0.1% of FS
Time
Rise Time
The Current 10%-90% Hardware Response Time is 1ms
Step Time Range
Data Recording
Record Condition
Time△t:100ms
Voltage△U: 10mV
Current△I:Range1:0.2mA; Range2:12mA
Record Frequency
10Hz
Charge
Charge Mode
End Conditon
Voltage, Current, Relative Time, Capacity, -△V
Discharge
Discharge Mode
Constant Current Discharge, Constant Power Discharge, Constant Resistance discharge
End Condition
Voltage, Current, Relative Time, Capacity
Pulse
Charge
CCC, CPC
Discharge
CCD, CPD
Minimum Pulse Width
500ms
Pulse
32 pulse setting in one step
Automated Switch
Automated switch from charge to discharge for each pulse
Cycle
Loop Measure Range
1~65535 times
Max Steps Per Loop
254
Nested Loop
Nested loop Function, Max Support 3 Layers
Protection
Software Protection
Voltage and Current Testing Sample
4-wire connecting
Noise
<85dB
Data Management
MYSQL Database
Communication Means
TCP/IP Protocol
Data Output
EXCEL,TXT
Communication Interface
Ethernet Port
Per Unit Main Channels No.
8
Dimensions
3U, W*D*H: 480*330*130(mm)
Working Temperature Range
0℃~40℃
Storage Temperature Range
0℃~45℃
Working Environment Relative Humidity Range
30% ~ 80% RH
Storage Environment Relative Humidity Range
30% ~ 90% RH
