600V CTI PTI Leakage Testing Equipment Solid Insulating Materials Flame Retardant Tet Chamber LCD Display
Products Description
IEC 60112 CTI PTI Tracking Leakage Testing Equipment Solid Insulating Materials Flame Retardant Tet Chamber
Overview:

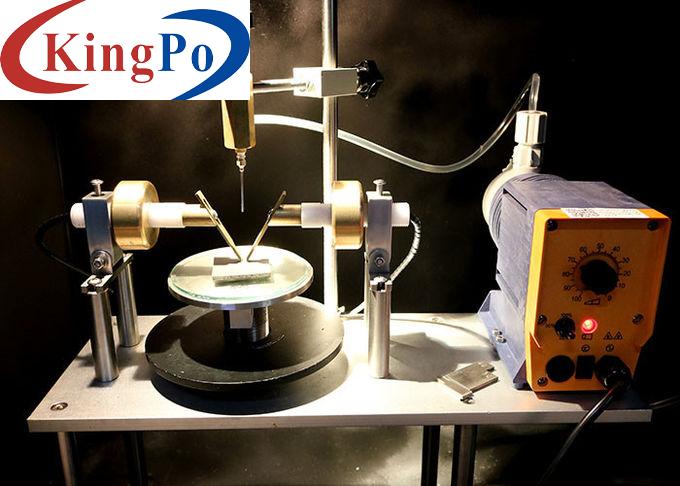

This CTI PTL testing chamber is used for determination of the relative resistance to tracking performance that solid electrical insulating material under the action of an electric field, when the surface exposed to water containing impurities.
This equipment adopts humanized button operating device and remote controller, high quality materials and professional technology . In addition, automatic drip timing device, accurate electrode pressure sensor display, simple operation and high accuracy improve the efficiency of the test and make our equipment is stable and economic.
Standards:
IEC60112
UL746A
IEC60695
ASTMD3638
Technical Parameters:
Button Operation + Remote Controller
LCD display
0～600V,accuracy:1.5%
Showcase (One of our cilent's flammability test laboratory)
Control Mode
Display
Electrode material
Platinum
Electrode specifications
5mm*2mm
Electrode spacing
4±0.1mm
Electrode pressure
1±0.05 N
Electrode angle
60°
Short circuit voltage drop
1±0.1A , Accuracy: 1%
Drip interval time
Adjustable
The height of the drip
30～40mm
Drip delay time
0.2S (solenoid valve open time)
Delay electric circuit
2 ± 0.1S (at 0.5A)
Test voltage range
Working volume
> 0.5 M³
Power supply
220V,50Hz or 110V, 60Hz (can be customized)
Environmental requirements
0 ~ 40 ℃ / ≤ 80% relative humidity
Standards
IEC60112, UL746A, IEC60695, ASTMD3638.
