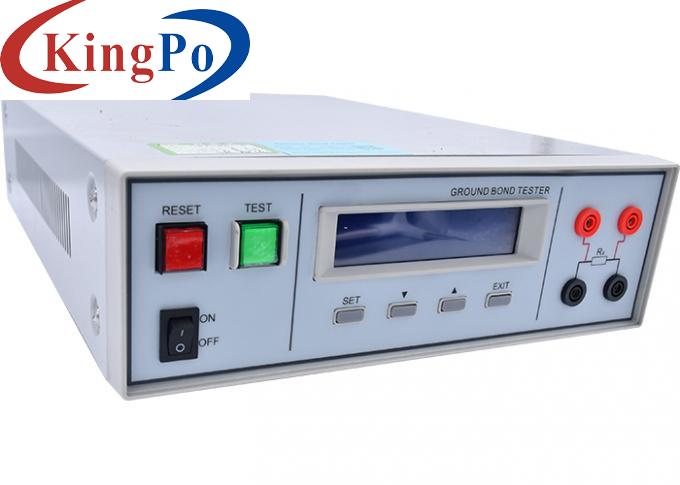

IEC 60745-1 Fuse 5A 250V Ground Resistance Test Equipment With Multiple Test Functions
Products Description
IEC 60745-1 Fuse 5A/250V Ground Resistance Test Equipment With Multiple Test Functions
Product Information For Ground Resistance Test Equipment:
■ Automated test function, multiple test functions can be freely combined (the instrument uses four-terminal method to output test current, which is stable and reliable, and is widely used in grounding reliability testing of mechanical and electrical product production lines; suitable for safety regulations in research and development laboratories and quality inspection rooms ) Test; In order to adapt to the spirit of ISO quality, PLC or RS interface communication can record both PASS / FAIL status and test data and upload and save for analysis and use)
Technical Parameters For Ground Resistance Test Equipment:
5-600 mΩ (5-10A)； 2-200 mΩ(11-25A)； 2-150 mΩ(26-30A)；
±(2% measurement)
■ Simple user operation (real-time display of measurement results, free setting of parameters, and simultaneous sound and light alarm prompt).
■ Software calibration (the instrument has a software calibration function to simplify parameter calibration and avoid dangerous operations for opening the case for maintenance).
■ Meet the national standards of the People's Republic of China such as GB4706.1, GB4943, GB7000.1, GB3883.1, and GB / T12113, as well as the international electrical committee standards such as IEC60335-1, IEC60950, IEC60598-1, IEC60745-1, and IEC60990.
■ CPU technology boost and up current, 50 / 60Hz dual frequency test to meet the test requirements of domestic / export products.
■ Upper limit preset, automatic reminding of alarm information, intelligent memory analysis function, system self-check function and automatic protection function.
■ 16 × 2 LCD display.
Model
SN9613X
Input voltage
220V±10%
Input frequency
50/60Hz±5%
Fuse
Fuse 5A/250V
Ground resistance test
No-load output voltage
﹤8VAC
Output current range and accuracy
AC 5~30A ±(1% setting)
Output current stability
Less than 0.3%(10A/100 mΩ)
Output frequency range and accuracy
50Hz/60Hz ± 0.2%
Ground resistance test range and accuracy
Test time range and resolution
0.5-999.9s, resolution 0.1s, 0s is for continuous output
Function parameter
PLC remote control device
Signal input: start
Display
16 * 2 blue screen character LCD display
Communication Interface
RS232(Optional)
Calibration method
Software correction
Working environment
0-40℃, 20-80%RH
Dimensions
280mm(W)×89mm(H)×370mm(D)
Accessories
Power cord × 1, test clip × 2, fuse× 1
