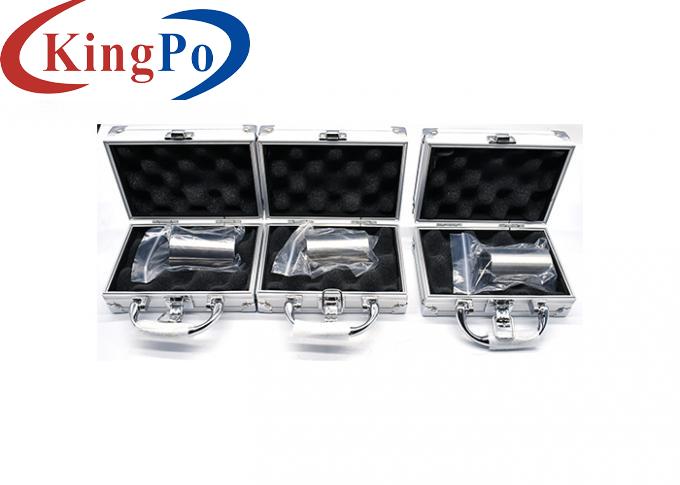

IEC 62133-1 Stainless Steel Intake Gauges For Inspection Of Small Cells And Batteries

Product information:

It complies with standards such as IEC62133-1:2017 Clause 8.2, 10 and Figure 2, IEC62133-2:2017 Clause 8.2, ISO 8124-1 5.2 and Figure 22, and IEC60086-4 Clause 7.2 and Figure 9.

It is used to check that children's products, such as small cells and batteries or toys, are not likely to be ingested by children under the age of 36 months.

Samples and Restrictions:

Small electrical items (e.g. batteries), toys

Application:

It is used to check whether children under 36 months of age are likely to swallow children's products such as small batteries and battery packs or toys.

Testing principle:

The test object is placed into the tester from any direction. If it reaches the tester's buttons, the object proves to be small.

Material:

Stainless steel

Test Procedures

Please refer to the relevant standards.

Place the test object into the widget cylinder from any direction. If it reaches the buttons of the widget cylinder, the object proves to be a small object.

Notice

1. Do not damage the shape of the device (e.g. scratching, dropping, etc.).

2. Protect from dust and humid environment so that oxidation will not affect dimensional accuracy.
