IEC60601-2-52 Loading Pad Medical Electrical Equipment
Products Description
IEC60601-2-52 Loading Pad Medical Electrical Equipment
Product Information:
1. Standard: conform to YY9706.252-2021 clause 201.5.102 and clause 201.9.8.3.3.1, IEC60601-2-52:2015 clause 201.5.102 and figure 201.104 and clause 201.9.8.3.3.1.
2. Samples and restrictions: medical bed.
3. Application: it is used to simulate human body dynamic load testing on medical beds to verify the reliability of equipment components that support or support patients during normal use during the application of dynamic forces.
4. Test principle: cooperate with human body dynamic load testing equipment to realize dynamic impact testing of medical beds. The impact load is 1350N or the maximum patient weight.
Technical Parameters:

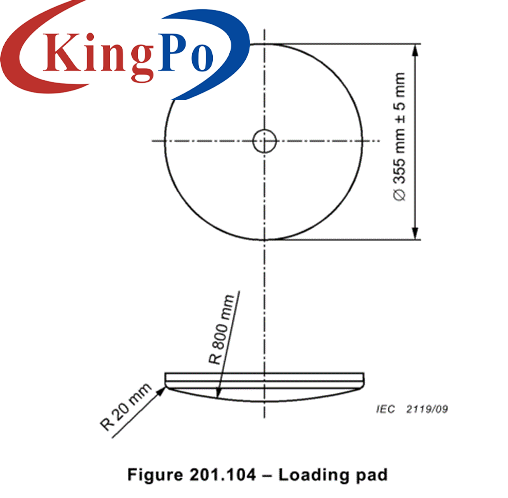

According to IEC60601-2-52:2015 figure 201.104. The load pad is a rigid circular object with a diameter of Φ355mm±5mm, a surface with a convex spherical curvature of R800mm radius, and a front edge radius of R20mm.
Dimensions
Material
45# steel, chrome plated
