Air Conditioners / Heat Pumps Energy Efficiency Lab 3HP Air Enthalpy Method Calorimeter Test
Products Description
3HP Air Enthalpy Method Calorimeter Testing Laboratory for Air Conditioners and Heat Pumps
Overview:
The test laboratory can accurately measure the air conditioning cooling capacity, heating capacity, cooling power consumption, heating power consumption, EER, COP, and inverter air conditioner’s rated / maximum / intermediate / minimum cooling capacity, rated / low temperature / intermediate / heating, cooling and heating power consumption, EER, COP, SEER and APF, etc.
The test laboratory can test 1~3PH household air conditioners. The test models cover all types of window, split wall mount, split cabinet and split ceiling cassette.
The test laboratory uses the air enthalpy method to measure the amount of cooling and heating capacity generated by the measured unit. The laboratory is divided into indoor and outdoor rooms. The indoor room mainly simulates the indoor working condition environment, and the outdoor room mainly simulates the outdoor working condition environment. The outdoor side temperature can be as low as -10 ° C and up to 50 ° C. Can meet the performance testing requirements of household air conditioning.
Standards:
Design and Testing according to the following standards:
► ISO 5151:2010
► ISO 16358:2013
► Other standards can be customized
Types of UUT :
- Split wall type
- Split cabinet type
- Split ceiling cassette type
- Window type
- Inverter air conditioner
Testing Range:
Cooling capacity
(W)
Heating capacity
(W)
Input power
(W)
Air Flow
(m³/h)
Technical Indicators:
Condensation
Condensate removal

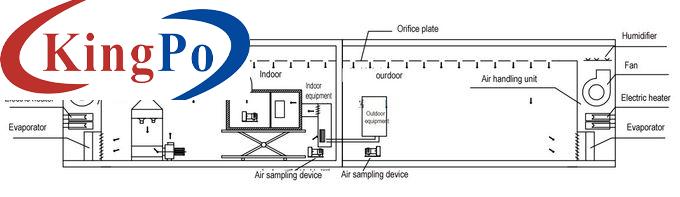

System flowchart:
Test range
≤7500
≤9000
≤8000
200~2000
Indoor Size Dry bulb Temperature
Indoor Size Wet bulb Temperature
Outdoor Size Dry bulb Temperature
Outdoor Size Wet bulb Temperature
Power
Control Range
0~50℃
0~50℃
-10~55℃
0~55℃(Relative humidity control below 0°C,0~95%RH)
0~8KW
Control Accuracy
±0.2
±0.2
±0.2
±0.2
±0.5%
Display Accuracy
±0.1
±0.1
±0.1
±0.1
±0.1%
Working conditions
Indoor side air return condition of /℃
Outdoor side air inlet condition of /℃
Dry bulb temperature
Wet bulb temperature
Dry bulb temperature
Wet bulb temperature
Cooling operation
Rated cooling
T1
27
19
35
24
T2
21
15
27
19
T3
29
19
46
24
Maximum cooling
T1
32
23
43
26
T2
27
19
35
24
T3
32
23
52
31
Freeze-up
T1
21
15
21
-
T2
10
-
T3
21
-
Minimum cooling
21
15
Minimum temperature recommended by the manufacturer
27
24
27
24
Heating operation
Heat pump rated heating
High temperature
20
15(Max.)
7
6
Low temperature
2
1
Extra-low temperature
-7
-8
Maximum heating operation
27
-
24
18
Minimum heating operation
20
-
-5
-6
Automatic defrost
20
12
2
1
Electric heating rated heating
20
-
-
-
