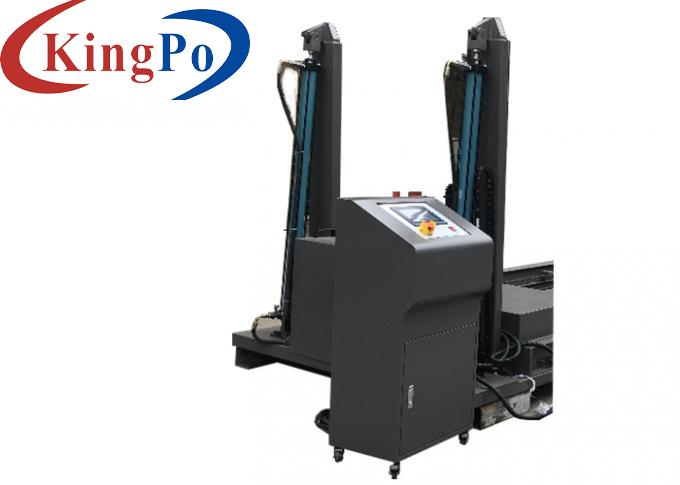

ASTMD4169 Beveling Impact Testing Machine For Packaging Resistance Impact Inspection

Product Overview:

The beveling impact testing machine simulates the ability of product packaging to resist impact damage in the actual environment, such as handling, stacking of shelves, sliding of motors, loading and unloading of locomotives, transportation of products and so on. The machine can also be used as a common test equipment for beveling impact in scientific research institutions, colleges and universities, packaging technology testing centers, packaging material manufacturers, foreign trade, transportation and other departments.

The machine conforms to the international standard ISO2244-2001 (E) "Packaging - Complete and full transport packaging Part V, horizontal impact test, inclined plane impact test, hanging pendulum test" and the national standard GB/ T4857.11-1992 "Packaging transport packaging horizontal impact test method". ASTMD4169, ASTMD880 and other related technical indicators.

The test principle of inclined plane impact, using the principle of transforming the potential energy of the object into kinetic energy, the package is coaxed to the end according to the predetermined position to obtain a certain impact velocity and an impact plate perpendicular to the velocity direction collision, in order to achieve the predetermined test purpose.

The bevel impact testing machine can simulate the horizontal impact and collision environment of packaging parts and packaging containers in the process of transportation. It can be used as a common test equipment for bevel impact in scientific research institutions, colleges and universities, packaging technology testing centers, packaging material manufacturers, foreign trade, transportation and other departments.

Features and Functions:

1. Flexible positioning of electric pulley, easy to fix the position, to achieve the required speed change value;

2. The height of the block is relatively low, which is conducive to the installation of samples; Reinforced impact resistant plate to ensure solid structure.

3. The pulley table can be adjusted to the level, which is convenient for users to install the specimen; Angle adjustment with hydraulic drive, flexible and convenient.

4. It can be operated by remote control to fully ensure the safety of test personnel;

5. When installing, the customer only needs to fix the machine on the ground, without other complex operation or installation, and the test is convenient.

Technical Parameters:

1. Test function: slope impact

2. Specimen weight: 0-300kg (or specified)

3. Maximum size of specimen: 1100×900×2100mm (length, width and height)

4. Sliding length: 0-2000mm can be set by programming (or specified)

5. Control system: PLC programming control

6. Impact speed range: 1.305-2.608m /s

7. Impact speed error: ±5%

8. Block table size: 1100×1100mm (length and width)

9. Size of impact panel: 1500×2500mm (width and height), thickness 40mm

10. Lifting mode: hydraulic lifting

11. The Angle between the track plane and the horizontal plane is 10°±1°

12. External dimension: about 5000×1500mm, height: 2500mm

13. Control cabinet: about 400×400×910mm

14. Equipment weight: about 1500kg

15. Operating voltage: 380V 50HZ

16. Power: 1.5KW

Performance of Products:

Applying the principle that the potential energy of the object is transformed into the monopolistic kinetic energy, a certain impact velocity can be obtained when the package is freely sliding at the bottom according to the fixed position

The test is achieved by colliding with an impact plate perpendicular to the direction of acceleration.

Final speed measurement: two fixed point sensors are installed at the end of the installation machine to measure the pulley speed.

Performance Requirements:

1. Flexible fixed electric vehicle, easy to fix the bit quantity, to achieve the required speed change value

2. The height of the car is relatively low, which is conducive to the installation and commissioning of products

3. The pulley table can be adjusted to the level, which is convenient for customers to install specimens

4. When installing, the customer only needs to fix the machine on the ground without other complex operation and installation, and the test is convenient.
