Technical Specifications for KP-1060 Capacitor Discharge Tester

1. Overview

The KP-1060 Capacitor Discharge Tester is a specialized instrument designed to measure the residual voltage in electrical equipment after power disconnection. It is particularly useful for ensuring the safety of users and service personnel by verifying that the equipment does not pose an electrical shock hazard once it is turned off. The tester is designed to comply with various national and international safety standards, including IEC62368 and 60335.1.IEC60601.1

2. Purpose

The primary purpose of the KP-1060 is to evaluate the decay of voltage in accessible electrical terminals immediately after the main power is disconnected. This ensures that the equipment is safe for users and service personnel by verifying that the residual voltage meets safety standards.

3. Features

High Precision Measurement: Ensures accurate measurement of residual voltage, providing reliable data for safety assessments.

Peak Voltage Detection: The tester disconnects the input test voltage at the voltage peak, ensuring precise measurement at the peak of the supply voltage.

Multiple Test Options: Capable of testing Line-Ground, Line-Neutral, and Neutral-Ground connections.

Micro-controller Technology: Features one-button testing and easy setup with an LCD display for clear test results.

Rugged Design: Built to withstand harsh conditions and designed for safety, speed, and efficiency.

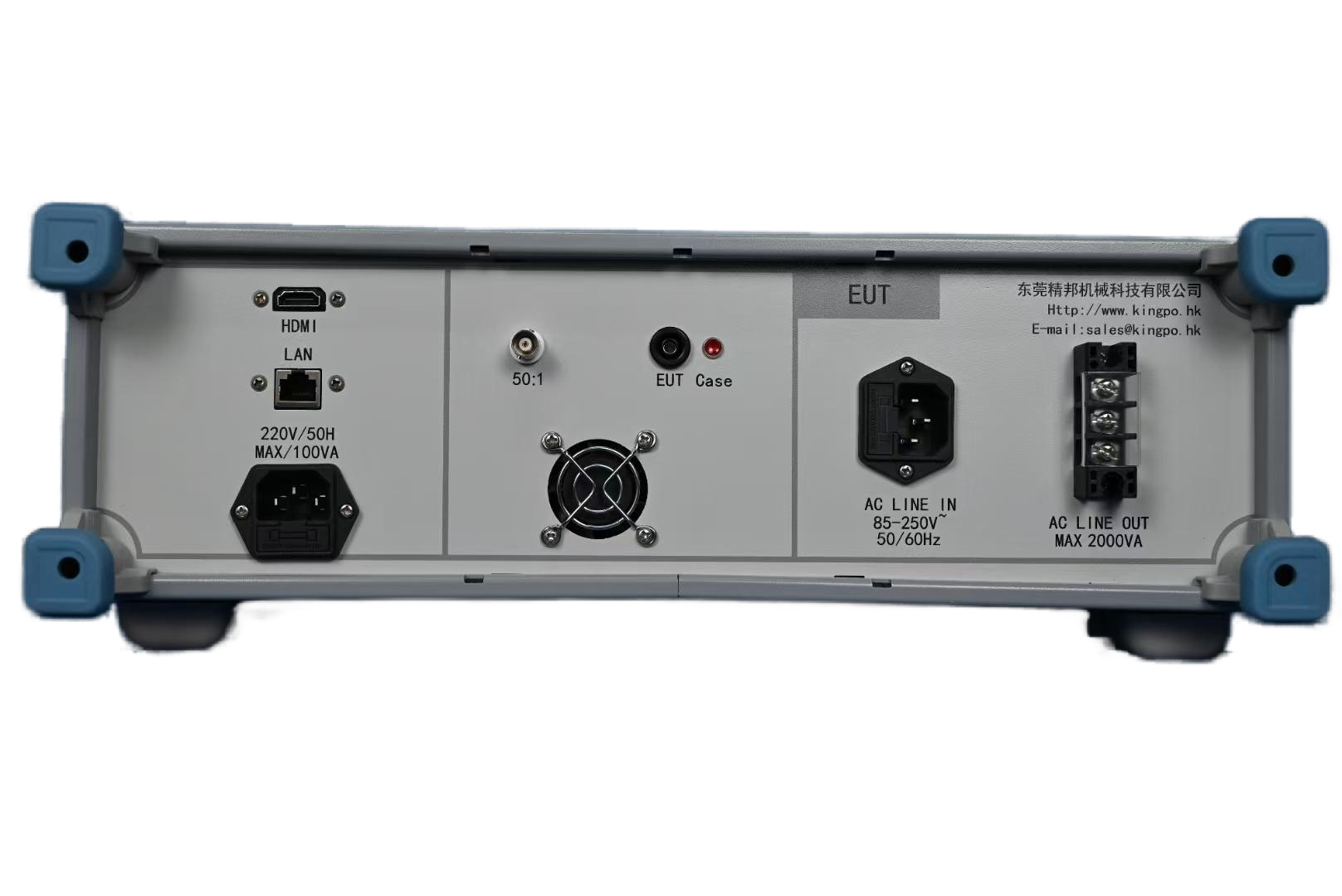

4. Technical Specifications

Output Voltage Range: AC 0–300V, 50/60Hz.

Maximum Output Current: 10A.

Maximum Load Power: 3KVA.

Test Voltage Range: 10–300V with a display resolution of 0.1V.

Test Time: Disconnection and testing can be set to occur 1 second or 2 seconds after the power is disconnected, with the disconnection time being selectable.

Measurement Times: 1–99 times, selectable.

Test Impedance: 100±5 MΩ.

Frequency: 50–60Hz.

Dimensions: 4U standard rack mount.

Power Supply: External test power source.

5. . Applications

Medical Equipment Testing: Ideal for testing the residual voltage in medical devices to ensure compliance with safety standards.

Home Appliances: Used to verify the safety of household appliances by measuring residual voltage after power disconnection.

Laboratory and R&D: Useful in research and development settings for testing and improving the safety of electrical equipment.

6. Compliance and Certifications

Standards Compliance: Adheres to IEC60601.11and IEC60335.1 standards, ensuring that the equipment meets the required safety specifications.

Certifications: The device is designed to meet the requirements of various international standards, ensuring its reliability and accuracy in testing.
