Battery Cell Pack Vibration Impact Test System 300kg.f Vertical & Horizontal Vibration Generator
Products Description
Battery Vibration Impact Test System 300kg.f Vertical and Horizontal Electrodynamic Vibration Generator
Overview:
The vibration test system can simulate the possible impact damages to the products or packages during transportation and handling, it can be used to find early failure of the batteries, also be used for fatigue testing to assess the life of the batteries. This testing system has a wide range of applications, wide application area, and significant and reliable test results. It is an ideal battery-specific vibration testing equipment for battery manufacturers, quality inspection departments and research institutes. It is suitable for testing various types of single cells and battery packs such as charging treasure, lithium ion, nickel hydrogen, nickel cadmium, lead acid, and metal hydride nickel.
Standards Compliant:
It is conforms to the standard of IEC62133:2017 clause 7.2.2, IEC62133:2012 clause 7.2.2, IEC60086-4 clause 6.4.3 and etc.
Test system composition:
The vibration test system consists of one-piece of horizontal vibration generator / vertically-expanded tabletop / cooling fan with muffler /digital switching power amplifier / vibration control measuring instrument. In addition, vertical expansion countertops can be customized or optional according to the sizes of the client's specimen, and can be combined with an environmental test chamber to form an integrated environmental test system.

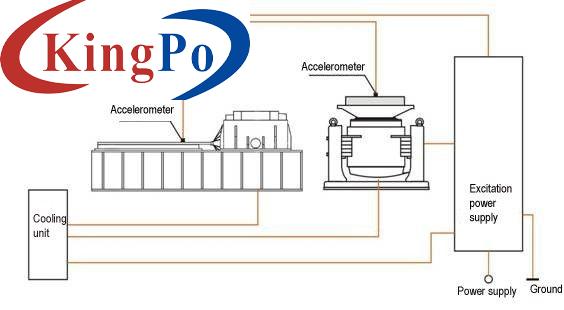

System Working Diagram:
Technical Parameters:
Impact displacement
(maximum displacement)
1) Power amplifier overvoltage protection
2) System timing protection
3) Power amplifier undervoltage protection
4) Zero Signal Protection (Reset)
5) Over displacement protection
6) Leakage protection
7) Table overheat protection
8) Excitation fuse protection
9) Module overheat protection
10) External timing protection
11) Output overcurrent protection
12) External zero signal protection
13) Output overvoltage protection
14) Water Smoothing Platform Interlocking Protection
15) Module over-current protection
16) Thermal overload protection
17) Module timing protection
18) Power amplifier boot soft start protection
Vibration Generator
Sinusoidal thrust
2940N (300kg.f)
Random thrust
2940N (300kg.f)
Impact thrust
5880N(600kg.f)
Frequency range
DG～3500Hz
Continuous displacement
20mm
25mm
Maximum speed
1.8m/s
Maximum acceleration
981m/s2(100g)(No-load)
Dynamic diameter
Φ150mm
First-order resonant frequency
2900 Hz±5%
Allowable eccentric moment
≤2500N·cm
Equivalent mass of moving parts
3kg
Load connection point
13
Table screw size (standard)
M8
Table screw layout (diameter, Yuan Zhou)
13-M8 Depth 16mm
Axial vibration isolation frequency
＜3Hz
Maximum load
120kg
Magnetic flux leakage
≤1mT
Ambient temperature
0~40℃
Size
1600mm×800mm×700mm
Weight
1100kg
Power amplifier output
3kVA
Signal-to-noise ratio
＞65dB
System protection
Rated output voltage
100Vrms
Output current
With the 150A step, the maximum can be up to 6000A
Input impedance
≥15kΩ
Input signal voltage
≤1.5Rms
Efficiency of power amplifier
＞92%
Harmonic distortion (resistance load)
＜1.0%
Output voltage measurement error
≤5%
Output current measurement error
≤5%
Output current crest factor
≥3
DC stability
Zero drift at the output is less than 30mv/8h
Frequency range
1-3500Hz:±3dB ； Medium frequency gain:≥80
DC/AC conversion efficiency
＞92%
Load property
Resistive, capacitive, emotionally arbitrary
Unbalance of parallel flow
≤2.8%
Average time free working time(MTBF)
＞3500 hours
Cooling mode
Forced air cooling
Power
AC 3phase 50Hz 380V±10%
Size
600mm×620mm×1600mm
Weight
580kg
Cooling fan with muffler
Fan power
0.75kW
Air volume
0.1m3/s
Duct diameter
125mm
Duct length
4m
wind pressure
1kpa
Size
500mm×520mm×650mm
Weight
30kg
Horizontal extension slide
Platform size
500×500 mm
Equivalent mass (maximum load-bearing)
28 kg
Upper bound frequency
Sine 2000 Hz, random 2000 HZ
Material
Magnesium aluminum alloy
Vertical Expansion Table
Platform size
500 mm×500 mm
Equivalent mass (maximum load-bearing)
28 kg
Upper bound frequency
Sine 1500 Hz, random 2000 HZ
Material
Magnesium aluminum alloy
