Battery Fire Exposure Test Apparatus For Lithium Ion Batteries Fire Test UL 2054

Product Information For Battery Fire Exposure Test Apparatus:

1.1 Applied standards

This apparatus conforms to UL2054 Clause 22 FIG. 22.1, UL 1642-2009 Clause 20 FIG. 20.1, GB 31241-2014 Article 7.9 FIG. E.2.

1.2 Application

Battery Fire Exposure Test Apparatus is an essential test equipment for battery manufacturers and quality inspection departments. This equipment has the characteristics of convenient operation, safety and reliability, and high precision. It is an ideal testing machine for battery combustion and projectile testing.

1.3 Features

1.3.1 PLC and touch screen for control and operation.

1.3.2 When there is a smoke alarm, the exhaust will automatically open, and when there is no smoke, it will be closed after a delay.

1.3.3 Unsuccessful ignition alarm and cut off steam source.

1.3.4 Built-in lighting, through external reflection, to ensure the life and safety of lighting, etc.

1.3.5 The HD video camera and visual window can enable operator to clearly observe the changes of the test object in the experiment.

1.3.6 With explosion-proof glass, and equipped with steel mesh, double protection.

1.3.7 Controlled by remote controller, the maximum distance can reach 10 meters.

1.4 Test procedures

The test battery is placed on a flat table covered with a cover plate with a 4-inch diameter hole in the middle. Cover plate is made of steel wire mesh with 20 holes per foot or steel wire 0.017 inch (0.43mm). Place a screen with 8 sides of 2 feet wide (610 mm) and 1 foot high (305 mm) on each side around the specimen. The metal mesh consists of 0.010-inch (0.25mm) metal wire at 16-18 wires per inch. The sample is placed on a metal mesh, covering the hole in the center of the table, and then heated until it explodes or is destroyed. The direction of the safety valve is parallel to the asbestos cloth.

Acceptance: No part of the explosive battery penetrates the screen, and no part or all of the battery protrudes from the screen.

Technical Parameters For Battery Fire Exposure Test Apparatus:

1	Sample limits	This test equipment prohibits: Testing or storage of biological specimens Test or storage of strong electromagnetic emission source specimens Testing or storage of radioactive material samples Testing or storage of samples of highly toxic substances Test or storage of specimens during testing or storage that may produce such substances or objects
2	Number of station	1 station
3	Burner	Bunsen burner, pipe inner diameter 0.375 inch (9.5mm)
4	Flame Applicate Time	99H59M59.9S±0.1s
5	Flame Height	10~75±2mm can be adjustable
6	Testing Hole Diameter	102mm
7	Fire Ignition Device	Auto fire ignition
8	Schematic diagram of blowtorch and electric fire device
10	Testing Bar Diameter	1/4 inch (6.4mm) ×12 inch (305mm)
11	Test Cover Width	24 inch (610mm) ×12 inch (305mm), octagonal
12	Test Cover Height	12inch (305mm)
13	Testing Aluminum Mesh Diameter	0.010-inch (0.25mm) 16hole×16hole
14	Octagonal stainless steel net cover	Distance between each other 2 feet (610mm), Octagonal net cover height1 feet (305mm)

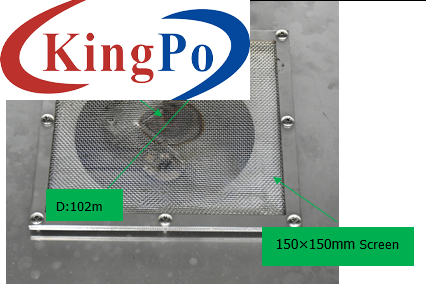

15	Screen	150×150mm (made of steel wire mesh with 20 holes per foot or steel wire 0.017 inch /0.43mm), Max capacity:5kg
16	Standard drawing of Eight-sided cover
17	Physical picture for Eight-sided cover
18	Burning Gas Requirement	High purity liquefied petroleum gas (should be prepared by Customer)
19	Control system	PLC, and a remote controller is offered, whole test procedure fully automatic
20	Display and Operation Method	Touch Screen
21	High Speed Camera	Brand: logitech Model:C920 Pro Maximum resolution: 1080p/30fps Size: WDH=94×71×43.3mm Compatible computer system: Windows® 7 or above macOS 10.10 or above Chrome OS™ USB-A   The camera can clearly observe the test situation in the chamber. (The computer and video support software should be prepared by user)
22	Video Monitor	Brand MI Model MJSXJ09CM Size 115*78*78mm Resolution 1296P(3 megapixel) Viewing angle Horizontal 360° Vertical 108° PTZ control APP control (Horizontal + Vertical) Full color night market Low light full color Infrared night vision Support Two-way voice Support Tracking function Support Install method lay flat /upside down /side mounted Wifi channel 2.4GHz Storage Come with 32G microSD card
23	Inter Size	W800XD700XH700 mm
24	Overall Dimension	W1000XD900XH1620 mm
25	Observation Window	430 X 350mm (20mm thickness tempered explosion proof glass), with explosion-proof net
26	Inner chamber Material	SUS304 Stainless steel
	Outer Chamber Material	Cold rolled powder painted
	Smoke Extractor	Φ 150mm on back side
	Bottom	Installed with universal wheels
	Pressure Relief Port	Test chamber with pressure relief device, when the pressure in the chamber to set up, self-open the pressure relief hole to release the pressure out of the chamber
