Clause 16.16 EV Withdrawal Force And Latching Verification Test Equipment
Products Description

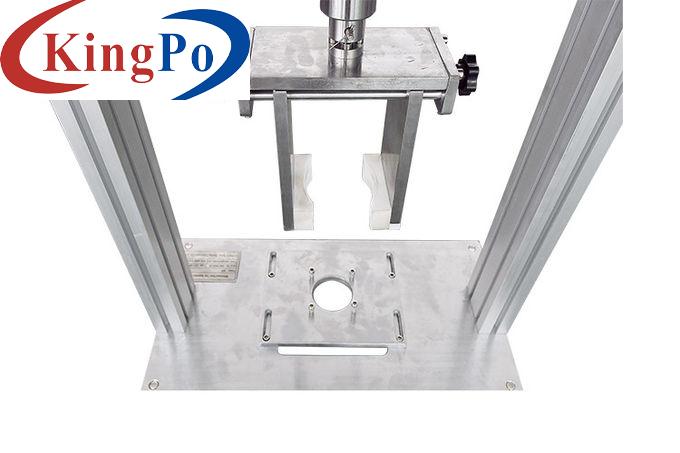

IEC 62196 Clause 16.16 Electric Vehicle Withdrawal Force and Latching Verification Test Equipment
Product Information:
It is designed and manufactured according to the standard requirements of IEC 62196-1:2020 clause 16.16, and etc.
The fixed accessory (the socket-outlet or vehicle inlet) is mounted such that the mating accessory moves vertically downward into it during the first stage of insertion. A principal weight of 9,2 kg is suitably placed on the mating accessory. If the moving accessory does not enter the fixed accessory to the position required, a supplementary weight of 0,8 kg is allowed to fall from a height of 5 cm onto the principal weight. The moving accessory shall then enter the fixed accessory to the position required to engage the contacts properly.
Technical Parameters:
Applied standard
IEC 62196-1
Applied clause
16.16
Insertion force test
A fixed insertion force device for socket or appliance input socket
Force weight kit
9.2kg, auxiliary weight 0.8kg
Drop height limit of auxiliary weight
50mm
2kg weight
Withdrawal force test
Shared the mechanical part of SN1013, based on IEC 62196-1 :2020 Figure 13
Shared the test plugs for SN1013
Counterweight, make the lifting accessories (gauge + hook + weight) to be 9kg, and the supplemental weight is 1kg
1kg weight
