Comprehensive Electrical Appliance Testing Equipment AC Hipot Insulation Ground Resistance Leakage Test
Products Description
Electrical Safety Comprehensive AC Hipot Test Equipment , Hipot Insulation Tester
Standards & Clauses:
IEC60884-1:2013 “Plugs and socket-outlets for household and similar purposes- Part1: General requirements”
IEC60335-1:2016 “Household and similar electrical appliances-Safety-Part1: General requirements”
IEC60950-1:2013 “Information technology equipment-Safety-Part1: General requirements”
IEC60065:2014 “Audio, video and similar electronic apparatus-Safety requirements”
Samples and Restrictions:
Household appliances, electrical accessories, lamps, etc.
Application:
Various types of home appliance manufacturers, as well as institutions that conduct home appliance safety testing and certification, research institutes
Test Contents:
AC Hipot test, insulation resistance test, ground resistance test, leakage current test, run power and low voltage start performance test
Structure:
Floor-standing
Technical Parameters:
≤200MΩ: ±(3%×reading+3counts)
>200MΩ:±(8%×reading+8counts)
3A ≤ output current ≤ 10A:10~600 mΩ
11A ≤ output current ≤ 25A:10~300 mΩ
26A ≤ output current ≤ 30A:10~200 mΩ
DC~10kHz: ± (3%×reading+0.010mA)
10 kHz ~1MHz: ± (5%×reading+0.050mA)
30.0~199.9W: ±(0.5%×reading+5W),
200~6000W(or2000W): ±(0.5%×reading+30W)
AC Hipot test
Booster rated output capacity
500VA (5000V/100mA), short circuit current is greater than 200mA
Output voltage waveform, distortion, adjustment rate
Sine wave, <3% (pure resistance,5000V/1mA), <3% (from empty load to full load)
Output voltage setting
Range
500～5000V
Resolution, accuracy
5V,±(3%×setting+10V)
Frequency setting
Range, accuracy
50Hz/60Hz, ±0.1%×setting
Alarming limits setting
Current upper-limit
0.10~99.99mA
Current lower-limit
0.00~10.00mA
Compensation current setting
Range
0.00~10.00mA, automatic testing, compensation can be set to ON/OFF
Time setting
Range
1~999s
Ramp up time range
1~100s
Accuracy
±(0.1%×setting+1count)
Breakdown current alarm
Range, accuracy
0.10~99.99mA, ±(3%×reading+3counts)
Insulation Resistance test
Rated output capacity
2VA(1000V/2mA)
Output voltage regulation, output voltage ripple
<3%(From no load to full load), <1%
Output voltage setting
Range, accuracy
DC 500V or 1000V, ±(3%×setting+3counts)
Alarming limits setting
Resistance upper-limit range
0.0~99.9 MΩ,100~2000MΩ(If upper-limit is set to 0, it will not make adjudgment for upper limit)
Resistance lower-limit range
0.3~99.9 MΩ, 100~2000MΩ
Time setting
Range, accuracy
1~999s, ±(0.1%×setting+1count)
Insulation resistance measurement
Range
0.0~99.9 MΩ, 100~2000 MΩ
Accuracy
Ground Bond Resistance test
No load output voltage
<12V
Output current setting
Range, accuracy
3~30A, ±(3%×setting+0.2A)
Current frequency setting
Range, accuracy
Sine waveform 50Hz/60Hz, ±0.1%×setting
Test time setting
Range
1~999s
Accuracy
±(0.1%×setting+1count)
Result display mode
Ground resistance or voltage
Ground resistance display mode
Alarming limits setting
Resistance upper-limit range
Resistance lower-limit range
0~100 mΩ
Compensation resistance setting
Range
0~200 mΩ, automatic testing, compensation can be set to ON/OFF
Ground bond resistance measurement
Range, accuracy
10~600 mΩ, ±(3%×reading+ 5counts)
Ground voltage display mode
Alarming limits setting
Voltage upper-limit range
30~7500 mV
Voltage lower-limit range
0~3000 mV
Compensation voltage setting
Range
0~1000 mV, automatic testing, compensation can be set to ON/OFF
Ground bond resistance measurement
Range, accuracy
10~7500 mV, ±(3%×reading+ 50mV)
Leakage Current test
Leakage current test type setting
Single phase load, static/dynamic leakage current
MD network selection
Standard IEC 60990 figure 4 network; other test network optional
Alarming limits Setting
Current upper-limit range
0.050~9.999mA
Current lower-limit range
0.000~5.000mA
Leakage current compensation setting
Range
0.000~1.000mA, automatic testing, compensation can be set to ON/OFF
Time test setting
Range, accuracy
1~999s, ±(0.1%×setting+1count)
Leakage current measurement
Range
0.050~9.999mA
Accuracy
Output voltage measurement
Range, accuracy
60~280V(phase voltage), ±(0.5%×reading+2counts)
Run Power Only forAN9651S(F)/AN9651F(F)/AN9651B(F)
Alarming limits setting
Power upper-limit range
6~6000W
Power lower-limit range
0~6000W
Test time setting
Range, accuracy
1~999s, ±(0.1%×setting+1count)
Voltage measurement
Range, accuracy
60~280V (phase voltage), ±(0.5%×reading+2counts)
Current measurement
Range, accuracy
0.030~3.999A, 4.00~25.00A, ±(0.5%×reading+2counts)
Active power measurement
Range, accuracy
Power factor measurement
Range, accuracy
0.10~1.00, ±(2%×reading+2 counts)
Low voltage start test
Alarming limits setting
Current upper-limit range
0.30~25.00A
Current lower-limit range
0.00~25.00A
Test time setting
Range, accuracy
1~999s, ±(0.1%×setting +0.05s)
Voltage measurement
Range, accuracy
60~280V (phase voltage), ±(0.5%×reading+2counts)
Current measurement
Range, accuracy
0.030~3.999A, 4.00~25.00A, ±(0.5%×reading+2counts)
Power supply for UUT
SN2212B Built-in isolation transformer
Isolation transformer input voltage, frequency
Determined based on input voltage and frequency
Isolation transformer output voltage ratio
Leakage current test
The output voltage is 1.06 times the input voltage
Run power test
The output voltage is 1.00 times the input voltage
Low voltage start test
The output voltage is 0.85 times the input voltage
Isolation transformer capacity
Single phase load rated capacity 6000VA
Isolation transformer voltage regulation
3% (from no load to full load)
Overcurrent protection
Maximum current is 30A, automatically cut off the isolated power supply after 5s overcurrent
SN2212S, SN2212F Built-in variable frequency power supply
Max. output capacity
5000VA
Output voltage distortion
1% @ 47~63Hz
Output voltage stability
1%
Programmed output voltage
Voltage range
0~300V
Voltage accuracy
0.5%RD+0.5%F.S.
Programmed output frequency
Frequency Range
47~63Hz
Frequency stability
0.1%
Output maximum current
0~150V file
27A
0~300V file
14A
SN2212S Configured IN-Pad
Processor
ARM926 core, 400MHz frequency
Operating system
Windows CE
Software
ESRS-Pad special software for safety test
Display
10.4” TFT color LCD
Operation method
Input through touch screen, support input through USB interface mouse and keyboard
Storage
50MB FLASH, user can choose large capacity SD memory card
External Interface
2-way RS232 interface, 2-way USB interface, CAN interface, DC12V power interface
Mounting brackets
3D, full angle, display stand
Bar code scanner
One barcode scanner with an RS232 interface defaulted
Interface function
Remote control interface
Standard, standard foot switch (start)
Alarm light interface
Standard, standard three-color warning light (test, qualified, warning)
Communication Interface
Standard RSA32, optional RS485, network port, GPIB, etc.
Variable frequency power control interface
Optional
Switch interface
Optional, start, stop, test, pass, alarm switch output
Printer interface
Optional, support for dot matrix printers and micro printers
General specification
Verification and calibration environment
23 ° C ± 5 ° C, (45 ~ 75)% RH, less dust
Use environment
0 ° C ± 40 ° C, (5 ~ 90)% RH, less dust
Storage environment
-10 ° C ~ 55 ° C, (5 ~ 95)% RH, less dust
System power
220V±10%, 50Hz±5%, 10A
System power consumption
Maximum 1000VA (excluding the operating power consumption of the tested product)
System weight (without packaging)
About 80kg
Dimensions (mm, without packaging)

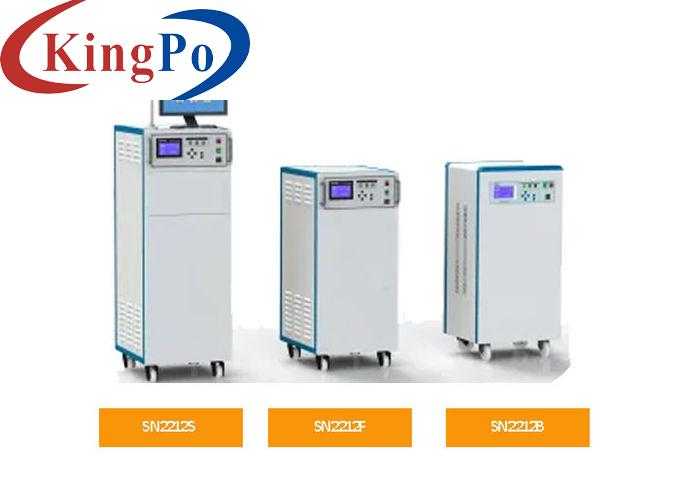

SN2212S
483(W)x 600(D)x 1355(H)
SN2212F
483(W)x 600(D)x 1355(H)
SN2212B
530(W)x 460(D)x 1105(H)
