IPX1 to IPX7 Comprehensive Protection Against Water Ingress Testing System
Overview:
The comprehensive water ingress testing system is used to verify the protective performance of the enclosure for electronic and electrical products, automobiles, motorcycle parts, household appliances, seals and lamps under:
The water ingress testing system ensures that the water drip, water spray or water jet speed reach the standard required value by controlling the water supply flow, and achieve equivalent pressure by controlling the depth of the sample immersed in water, produce a uniform flow of water or pressure over the whole area of the enclosure.
Standards compliant:
IEC 60529-2013 “Degrees of protection provided by enclosure (IP code)” IPX1, IPX2, IPX3, IPX4, IPX5, IPX6 and IPX7
IEC 60598-1-2017 “Luminaries-Part1: General requirements and tests”
Structure:

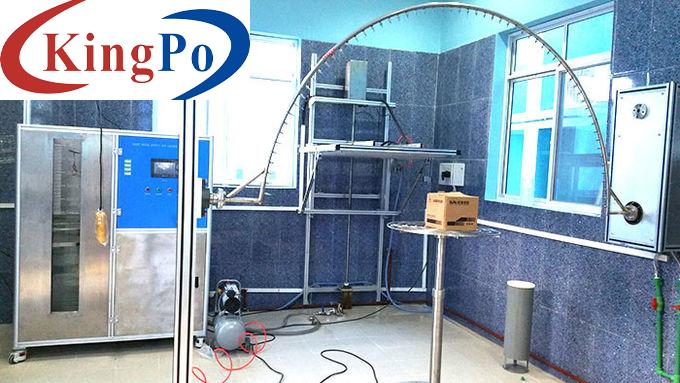

The test equipment consists of a drip mechanism, an oscillating mechanism, a water jet mechanism, an immersion tank, an electrical control cabinet and a turntable. The bracket of drip box is wall-hanging and with anti-drop function, which can lift automatically controlled by motor. One end of the oscillating mechanism is mounted on the wall, and the other end of the oscillating mechanism is fixed on the floor support, the tube is caused to oscillate by motor driving. The nozzle is fixed on the floor stand support. The water tank and electrical control part are integrated, the sample basket lifting is driven by electric hoist. The rotation speed of turntable is adjustable, used for IPX1 ~IPX6 test, and can be tilted 15°, used for IPX2 test. The test equipment is equipped with a water filter cleaning device to prevent pinhole blockage. This whole system adopts open type structure.
Technical parameters:
◆ Applied to IPX5/6 strong water jet test
◆ Flow range: 10-100L/min
◆ Flow accuracy: ±0.5L/min
◆ Flowmeter: turbine flowmeter
◆ Water pump: stainless steel centrifugal pump
◆ Applied to IPX1/2/3/4 water spray test
◆ Flow range: 1-10L/min
◆ Flow accuracy: ±0.5L/min
◆ Flowmeter: small turbine flowmeter
◆ Water pump: stainless steel centrifugal water pump
◆ Pressure range: 0.1-3Kg/cm2
◆ Pressure display: digital display, using digital pressure gauge
◆ Can be used for water supply of IPX1-6 test and IPX7 water immersion test
◆ Volume: 500L
◆ Tank size: W600mmXD600mmXH1400mm
◆ Observation window: tempered glass window
◆ Observation Window size: W200mmXH1250mm
◆ Depth gauge: stainless steel scale
◆ Scale length: 1300mm, resolution 1mm
◆ Level control: float switch + overflow tube
IPX3:over an arc of 60° either side of the center point (120°)
IPX4:over the whole 180° of the semicircle
Hole spacing: 50mm
IPX3:4s /cycle(2×120°);
IPX4:12s /cycle(2×350°);
water dripping at degree IPX1 and IPX2
water spraying and splashing at degree IPX3 and IPX4.
water jets at degree IPX5 and IPX6
temporary immersion in water at degree IPX7
1. Electrical Control Cabinet & Water Immersion Tank
Electrical Control Cabinet
Application Range
Water supply and control for IPX1-6 test, IPX7 water immersion test
Water Supply Method
Constant flow water supply, constant pressure water supply
Water Supply Control Process
The electronic flow meter and digital pressure gauge monitor the current values in real time after user sets the flow and pressure values on the touch screen, the data is read into the PLC through data conversion, and then the water pump speed is adjusted through the frequency converter. The system has two channels of water supply: one large flow branch and one small flow branch.
Large Flow Branch
Small Flow Branch
Immersion Tank / Water Storage Tank
Water Supply Pipeline
The water supply of the system is distributed to each equipment through the PVC hoses according to the site layout, controlled by the electromagnetic water valve separately of each equipment. The water supply pipeline is installed with a drain valve. After the test is completed, the water in the water pipe is automatically removed.
Filter
Stainless steel casing, fine filter element
Safety Protection
Phase sequence protection, leakage protection, water shortage protection, abnormal protection
2. IPX1/2 Vertical Water Drip Box Test Device
Drip Area
WD=1000×1000mm, other sizes can be customized
Drip Height
200mm distance of the needle to the sample is automatically measured by infrared sensor
Drip Speed / Water Flow
1+0.5 0mm/min or 3+0.5 0mm/min switchable, rainfall is digitally controlled
Needle Pinhole Aperture
Φ0.4mm
Drip Hole Spacing
20mm×20mm
Drip Box Lifting
Driven by motor, adjustable from 1100-1800mm, screw guide ensures smooth lifting and self-locking
Test Time
0-99.9min, can be preset
3. IPX3/4 Oscillating Tubes Water Spray Test Device
Oscillating Tube Radius
R200, R400, R600, R800, R1000, R1200, R1400, R1600mm are optional, made of stainless steel
Needle Pinhole Aperture
Φ0.4mm
Spray Holes Distribution
IPX3/4 Switching
Switching by changing a certain number of blind hole needles or through-hole needles
Oscillating Angle
IPX3:120°(±60°)； IPX4:350°(±175°)
Oscillating Speed
Water Flow
1-10L/min adjustable
Test Time
0.01S～99.9 min, can be preset
4. IPX3/4 Hand-held Water Spray Nozzle
Parameters of Spray Nozzle
Outer diameter: Ф102mm, spherical diameter: SФ75.5mm, 1 hole at the center, 2 inner circles of 12 holes at 30° pitch,4 outer circles of 24 holes at 15° pitch , total 121 holes of Ф0.5mm, made of brass.
Water Flow
10L/min±5%, flow meter is adjustable manually through rotameter, electronic flowmeter can be optional
Pressure
50～150Kpa, the pressure gauge measuring range: 0～0.25Mpa
Moving Shield
Made of aluminum, can be detachable
Water Spraying Direction
The water spraying angle can be adjustable, the IPX 3&4 spray nozzle shares the same support with IPX 5&6 hose nozzle
Test Duration
0.01S～99.9 min, can be preset
5. IPX5/6 Hand-held Water Jet Nozzle
Parameters of Hose Nozzle
IPX5: Ф6.3mm; IPX6: Ф12.5mm
Water Flow
IPX5: 12.5±0.625L/min; IPX6: 100±5 L/min, flow meter is adjustable through rotameter manually, electronic flowmeter can be optional
Distance from Nozzle to Enclosure Surface
2.8m ((The distance from the nozzle to the center surface of the turntable, standard requires 2.5-3m)
Water Jetting Direction
The water spraying angle can be adjustable
Nozzle Fixed Method
The IPX 5&6 hose nozzle and IPX 3&4 spray nozzle are fixed on the same support
Pressure Gauge
0~0.25MPa, can be displayed
Test Duration
0.01S～99.9min, can be preset
6. IPX7 Temporary Immersion Chamber
Chamber Size & Volume
Inner chamber size: WDH=600*600mm*1400mm,500L
Highest Test Water Depth
1200mm, with a scale, resolution of the scale: 1mm
Basket Size
Stainless steel hanging basket: WD=500×500mm
Lifting Control
Controlled by electric hoist
Test Duration
Manually control
Observation Window
Tempered glass window, window size: W200mmXH1200mm
7. Turntable
Diameter
Φ600mm
Rotation Speed
1r/min
Bearing Capacity
≤50kg
Other Features
Waterproof, can be tilted 15°, with lifting support frame
