Coupler Pulling Test Apparatus Connector To Pull Test For Household IEC 60320-1
Products Description

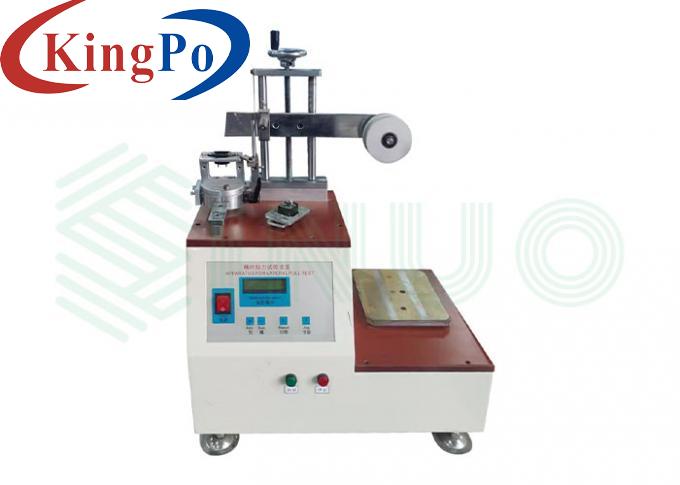

Coupler Pulling Test Apparatus Connector To Pull Test For Household IEC 60320-1
Standards For Coupler Pulling Test Apparatus:
IEC60320-1:2021 "Appliances couplers for household and similar general purposes- Part1:General requirements" clause 23.3 and figure 19.
Test principle For Coupler Pulling Test Apparatus:
The connector is inserted into an appliance inlet of a type corresponding with the connector to be tested and complying with the relevant standard sheet, a spring force mechanism is used to apply lateral force to it.
Technical parameters For Coupler Pulling Test Apparatus:
Structure For Coupler Pulling Test Apparatus:
The connector test should be equipped with an appliance inlet of a type corresponding with the connector to be tested and complying with the relevant standard sheet.
Test station
Single station
Flexible cable bending height
40±2 mm,adjustable
Power supply
AC 220V, ±50Hz
Working temperature
5-35℃
Humidity
30%-90%
Pull force range
0-100N
Pulling method
50 times in one direction and then 50 times in the opposite direction
Cable selection and corresponding pull value table
Appliance input socket
Optional gauge according to requirements
