DIN 0620-1 VDE Gauges For Checking Dimensions Of Plugs Sockets Outlets
Products Description

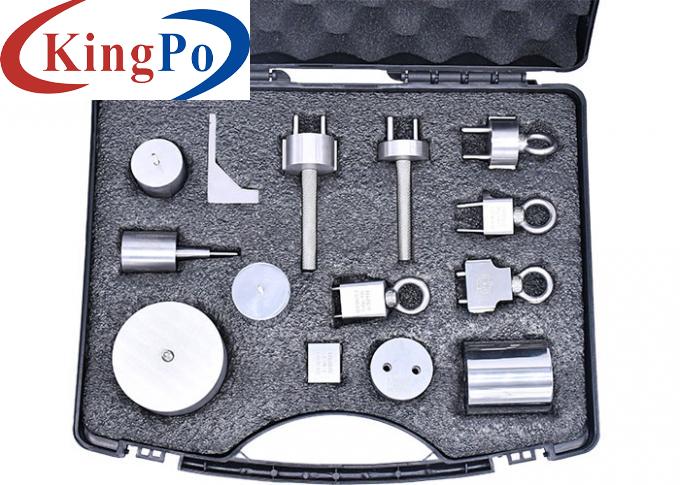

DIN VDE 0620-1 VDE Gauges For Checking Dimensions Of Plugs And Sockets Outlets
Product Information For VDE Gauges:
These measuring gauges confirm to the standard of IEC 60884-1:2013 clause 9, which are used for the dimensional measurement and verification of the plug socket for household and similar use. They are the necessary testing devices used in the laboratory and measurement test department. The specific measuring gauges are made according to DIN VDE 0620-1:2010:
Technical Parameters For VDE Gauges:
Minimum opening width and minimum withdrawal force
of contact socket
Insertion force of double board plug with side
grounding contact
A gauge used to test the interval
of the first contact closure
1 SET/
4 PCS
1 SET/
4 PCS
1 SET/
2 PCS
Non-pluggability of bipolar plugs without grounding
contacts
Impossibility of single-pole plug insertion
(including 250g and 1000g weights)
Probe to check the inaccessibility of live parts in
the protection door after the normal operation test
Probes used to check the inaccessibility of live parts
in the protection door and the live parts of the
enhanced protection socket
1 SET /
2 PCS
1. Please do not damage the appliance shape (such as scratching, bending, etc.).
2. Prevented from dust and moisture environment, in order to avoid the oxidation to affect the dimensional accuracy.
3. Add anti-rust oil regularly.
No.:
Figure No.
Name
QTY
Standards:IEC60884-1:2013 & DIN VDE 0620-1:2010 Gauge List & Quote
1
DIN-VDE0620-1-Lehre1
Socket jack R size gauge (5.0, 5.8, 6.0)
3 PCS
2
DIN-VDE0620-1-Lehre2
2 PCS
3
DIN-VDE0620-1-Lehre3
Insertion force of bipolar plug
1 PC
4
DIN-VDE0620-1-Lehre4
1 PC
5
DIN-VDE0620-1-Lehre5
6
DIN-VDE0620-1-Lehre6
Diameter of the pin
7
DIN-VDE0620-1-Lehre7
Pin distance
8
DIN-VDE0620-1-Lehre8
Maximum opening width of contact socket
1 PC
9
DIN-VDE0620-1-Lehre9
Test plug interchangeability gauge
1 PC
10
DIN-VDE0620-1-Lehre10
Impossible A of Single pole contact hole contact
1 PC
11
DIN-VDE0620-1-Lehre10
Impossible B of Single pole contact hole contact
1 PC
12
DIN-VDE0620-1-Lehre11
1 PC
13
DIN-VDE0620-1-Lehre12
1 SET
14
DIN-VDE0620-1-Lehre13
1 SET
15
DIN-VDE0620-1-Lehre14
Test for grounding on both sides
1 PC
16
DIN-VDE0620-1-Lehre15
1 SET
17
DIN-VDE0620-1-Lehre16a
Maximum withdrawal force of plug (16a)
1 PC
18
DIN-VDE0620-1-Lehre16b
Maximum withdrawal force of plug (16b)
1 PC
19
DIN-VDE0620-1-Lehre16c
Maximum withdrawal force of plug (16c)
1 PC
20
DIN-VDE0620-1-Lehre16d
Maximum withdrawal force of plug(16d)
1 PC
21
DIN-VDE0620-1-Leher16e
Gauge (including 18N weight)
1 PC
22
DIN-VDE0620-1-Lehre17
Lehre17 gauge
1 PC
23
DIN-VDE0620-1-Lehre18
Lehre18 gauge
1 PC
24
DIN-VDE0620-1-Leher19a
Force measuring gauge for 16A socket protection door
1 PC
25
DIN-VDE0620-1-Leher19b
Force measurement gauge for 2.5A socket protection door
1 PC
26
DIN-VDE0620-1-Bild14
Bild14 gauge
1 SET
27
DIN-VDE0620-1-Bild43
Bild43 gauge
28
DIN-VDE0620-1, EN50075-Fig2
Gauge for testing plug interchangeability
1 PC
29
DIN-VDE0620-
1-Bild16a16A temperature rise plug gauge 2P+E
1 PC
30
DIN-VDE0620-
1-Bild16b16A temperature rise plug gauge 2P+N+E
1 PC
31
DIN-VDE0620-
1-Bild16a25A temperature rise plug gauge 3P+N+E
1 PC
32
DIN-VDE0620-
1-Bild16d2.5A temperature rise plug gauge 2P+E
1 PC
