DIN VDE 0620-1:2010 Plug Socket Gauges Die Steel High Accuracy
Products Description

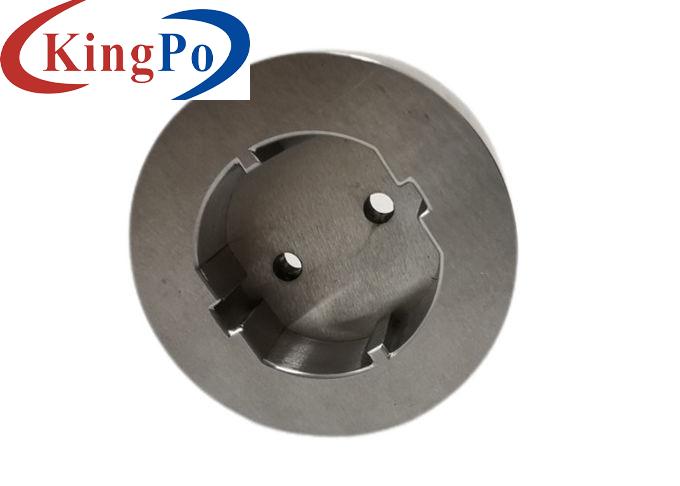

DIN VDE 0620-1:2010 Plug Socket Gauges Die Steel High Accuracy
Standards & Clauses:
IEC60884-1:2013 ”Plugs and socket-outlets for household and similar purposes- Part1:General requirements” clause 9.1
DIN VDE 0620-1:2010 ”Plugs and socket-outlets for household and similar purposes - Part 1: General requirements on fixed socket-outlets”
Samples and Restrictions:
German plugs and sockets
Application:
Checking dimensions of plugs and sockets
Test Principle:
Check the shapes and sizes of the plugs and sockets by the gauges, to verify the plugs and sockets are compliance with the standard ranges
Structure:
Refer to DIN VDE 0620-1:2010
Technical Parameters:
Impossibility of single-pole plug insertion
(including 250g and 1000g weights)
Probe to check the inaccessibility of live parts in the protection door
after the normal operation test
Probes used to check the inaccessibility of live parts in the protection door
and the live parts of the enhanced protection socket
DIN-VDE0620-1,
EN50075-Fig2
Standards:IEC60884-1:2013 & DIN VDE 0620-1:2010 Gauge List
1
DIN-VDE0620-1-Lehre1
Socket jack R size gauge (5.0, 5.8, 6.0)
3 PCS
2
DIN-VDE0620-1-Lehre2
Minimum opening width and minimum withdrawal force of contact socket
2 PCS
3
DIN-VDE0620-1-Lehre3
Insertion force of bipolar plug
1 PC
4
DIN-VDE0620-1-Lehre4
Insertion force of double board plug with side grounding contact
1 PC
5
DIN-VDE0620-1-Lehre5
A gauge used to test the interval of the first contact closure
1 SET/4 PCS
6
DIN-VDE0620-1-Lehre6
Diameter of the pin
1 SET/4 PCS
7
DIN-VDE0620-1-Lehre7
Pin distance
1 SET/2 PCS
8
DIN-VDE0620-1-Lehre8
Maximum opening width of contact socket
1 PC
9
DIN-VDE0620-1-Lehre9
Test plug interchangeability gauge
1 PC
10
DIN-VDE0620-1-Lehre10
Impossible A of Single pole contact hole contact
1 PC
11
DIN-VDE0620-1-Lehre10
Impossible B of Single pole contact hole contact
1 PC
12
DIN-VDE0620-1-Lehre11
Non-pluggability of bipolar plugs without grounding contacts
1 PC
13
DIN-VDE0620-1-Lehre12
1 SET
14
DIN-VDE0620-1-Lehre13
1 SET
15
DIN-VDE0620-1-Lehre14
Test for grounding on both sides
1 PC
16
DIN-VDE0620-1-Lehre15
1 SET
17
DIN-VDE0620-1-Lehre16a
Maximum withdrawal force of plug (16a)
1 PC
18
DIN-VDE0620-1-Lehre16d
Minimum withdrawal force of plug(16d)
1 PC
19
DIN-VDE0620-1-Leher16e
Gauge (including 18N weight)
1 PC
20
DIN-VDE0620-1-Lehre17
Lehre17 gauge
1 PC
21
DIN-VDE0620-1-Lehre18
Lehre18 gauge
1 PC
22
DIN-VDE0620-1-Leher19a
Force measuring gauge for 16A socket protection door
1 PC
23
DIN-VDE0620-1-Leher19b
Force measurement gauge for 2.5A socket protection door
1 PC
24
DIN-VDE0620-1-Bild14
Bild14 gauge
1 SET
25
DIN-VDE0620-1-Bild43
Bild43 gauge
1 SET /2 PCS
26
Gauge for testing plug interchangeability
1 PC
27
DIN-VDE0620-
1-Bild16a16A temperature rise plug gauge
1 PC
28
DIN-VDE0620-
1-Bild16d2.5A temperature rise plug gauge
1 PC
