Electrical Beauty Care Appliance Button Durability Testing Equipment
Products Description

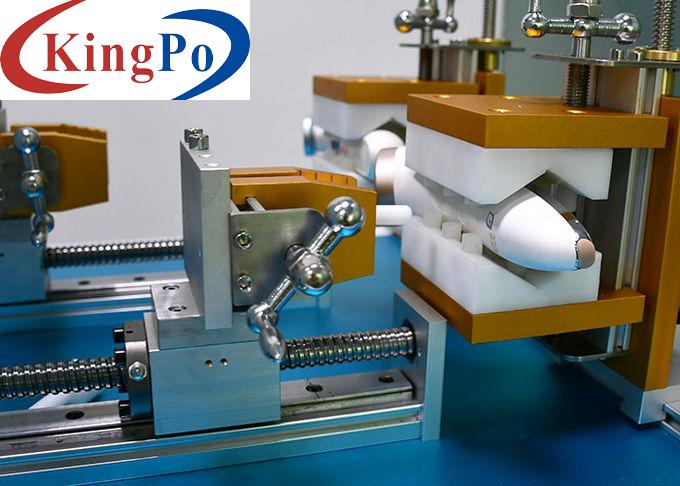

UL859 Electrical Beauty Care Appliance Buttons EnduranceTest Machine
Product overview:
This temperature measuring device is designed and manufactured according to UL 859. It is suitable for verifying the durability of linear action switches on various electrical appliances, such as key switches, toggle switches, and rocker switches, and assessing whether the switch can withstand mechanical damage and electrical fatigue damage in normal use, as well as whether there is contact adhesion or long-term closing or disconnection, and check whether it has excessive wear and other harmful consequences. .
Working principle:
The servo motor drive mechanism is used to perform repeated actions such as linear pressing, flipping, and rotating on the buttons, and at the same time, it can be used with an external load to perform on-off tests. The power-on and power-off time, test speed, and stroke can all be preset through the touch screen.
Technical Parameters:
Test station
2 statio
Control
PLC intelligent integrated control with 7-inch touch screen
Drive Mm
Driven by servo motor
Clamping method for sample
Mechanical clamping, clamping point position is adjustable
Replaceable mechanism
General mechanism, push-button switch push rod, toggle switch mechanism, rocker switch pulley mechanism
Linear stroke
0-100mm, can be preset
Conduction time
0-99.9s, can be preset
Test speed
15 times/min, 7.5 times/min, 30times/min, can be preset
Test times
0~999999 times, can be preset
Test load
External (prepared by user or optional)
Equipment dimensions
Approx. 800×800×800(mm)W×D×H,weight: 100kg
