IEC 60335-1 Clause 29 Creepage Distance Test Cards for Measuring Electrical Clearance

Standards & Clauses:

IEC60335-1 Clause 29 , IEC 60065 Clause 13, IEC60884-1, IEC60598, and etc

Samples and Restrictions:

Electrical clearance of household appliances, electrical accessories, lamps, etc.

Application:

The gauges are used to determine the shortest path between two conductive parts, or between a conductive part and the bounding surface of the equipment, measured along the surface of the insulation, with specifications made according to the requirements.

Technical Parameters:

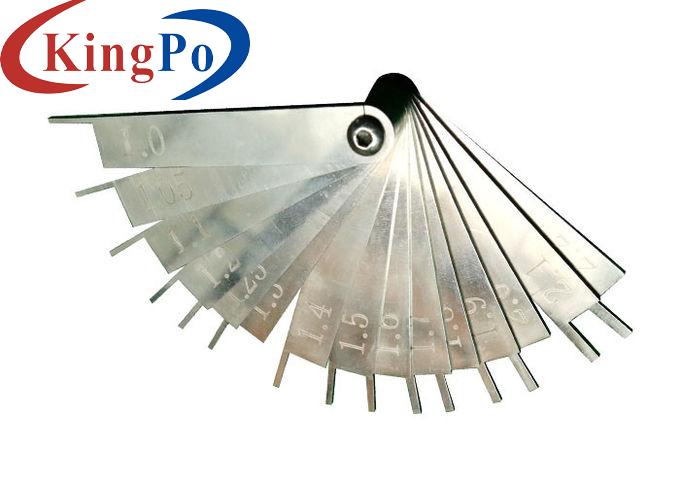

The set of creepage distance gauges are integrated with 30 pieces of creepage distance gauges:

1.0mm/1.05mm/1.1mm/1.2mm/1.25mm/1.3mm/1.4mm/1.5mm/1.6mm/1.7mm/1.8mm/1.9mm/2.0mm/2.1mm /2.2mm /2.4mm

/2.5mm/2.8mm/3.2mm/3.6mm/4.0mm/4.2mm/4.5mm/5.0mm/5.6mm/6.3mm/7.1mm/8.0mm/9.0mm/10.0mm

Material: Stainless steel
