Electrical Safety AC DC High Voltage And Insulation Resistance Tester
Products Description
AC/DC High Voltage Withstand & Insulation Resistance Testing Equipment
Product information:
■Meet the test requirements of general electrical safety standards such as IEC60335.1, UL60335.1, GB4706.1, etc.
■ High-definition LCD display and simple panel operation
Technical Parameters:
AC 200～5000V
±(1.5%×setting+5digits)
0.10～100.0mA
±(1.5%×setting+5digits)
Upper limit :0.1～100.0mA；
Lower limit :0.00～5.00mA
1~2000MΩ:
≤100MΩ:± (5%×display+3 digits )
>100 MΩ:± (8%× display +8 digits)
Upper limit: 0 ～ 2000MΩ; lower limit: 1 ～ 2000MΩ
1～300s 1s/step

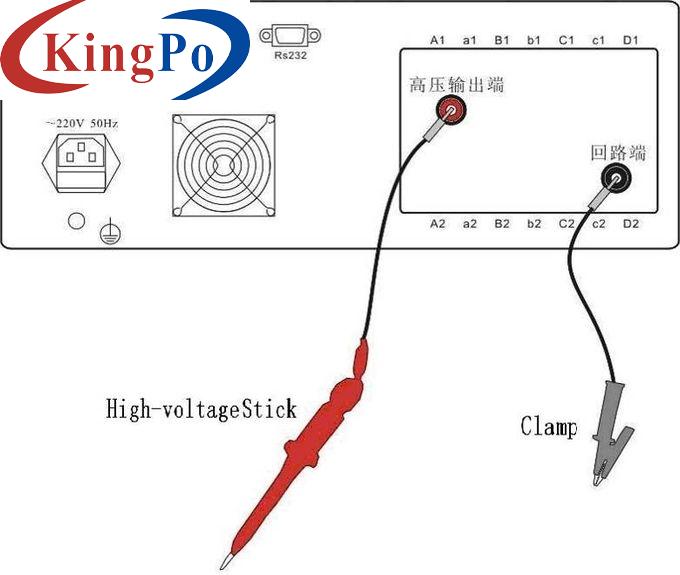

External Wire Connection:
First confirm the power supply standard, AC 220V±10%,50Hz±5%,single-phase; the fuse standard: 5A,slow-blow. Note: terminals on the power supply connection box are marked as: output L, input N, GBI+,GBU+, earth connection clamps are marked GBU-,GBI-, connect the corresponding terminals on the rear panel when use.
■ Up to 100 groups of test condition memory, model of each group can be set, easy to find, test data can be saved via USB(optional)
■ Voltage ramp-up and ramp-down functions to meet the requirements of new industry standards;
■ Breakdown current upper and lower limit preset, intelligent judgment;
■ Digital closed-loop feedback control mode, automatic voltage regulation mode, automatic correction of output voltage/current, and not affected by the external power grid, ensuring the accuracy of the test
Model
SN9636H
Test Contents
AC and DC withstand voltage, insulation resistance
Data storage method
USB (optional)
External interface
Alarm LAMP, PLC, RS-232
AC withstand voltage
Output voltage setting range / accuracy
Breakdown current measurement range / accuracy
Breakdown current preset alarm range
Test time range / resolution
1～300s 1s/step
DC withstand voltage
Output voltage setting range / accuracy
DC 200～5000V ±(1.5%× setting +5 digits )
Breakdown current measurement range / accuracy
0.10～10.00mA ±(1.5%×display+5 digits)
Breakdown current preset alarm range
Upper limit: 0.10～10.00mA; lower limit: 0.00～5.00mA
Test time range / resolution
1～300s 1s/step
Insulation resistance
Output voltage setting range / accuracy
DC500/1000V ±(1.5%× reading +5 digits )
Insulation resistance measurement range / accuracy
Insulation resistance alarm setting range
Test time range / resolution
Equipment dimensions
435MM(W)*150MM(H)*550MM(D)
Equipment weight
Approx. 30KGS
Equipment accessories
Power cord*1, high voltage probe*1, test wire*1, fuse*1
