Gauge For Checking Non - Accessibility Of Live Parts , Through Shutter

MOQ:1
Price:Customized
StandardPackaging:Plywood
DeliveryPeriod:10days
PaymentMethod:T/T
SupplyCapacity:20SetsPerMonth

Products Description

Place of Origin:China

Brand Name:KingPo

Certification:Calibration Certificate (Cost Additional)

Model Number:KP2110 & SN2110-A

Standars:IEC 60884-1

Clause:10.5, Figure 9 And 10

BF2110:Test Probe With Force Of 20N

BF2110-A:Test Probe With Force Of 1N

Minimum Order Quantity:1

Price:Customized

Packaging Details:Plywood

Delivery Time:10 days

Payment Terms:T/T

Supply Ability:20 Sets Per Month

Highlight:Gauge For Checking Non Accessibility, Gauge For Checking Live Parts


Product Description

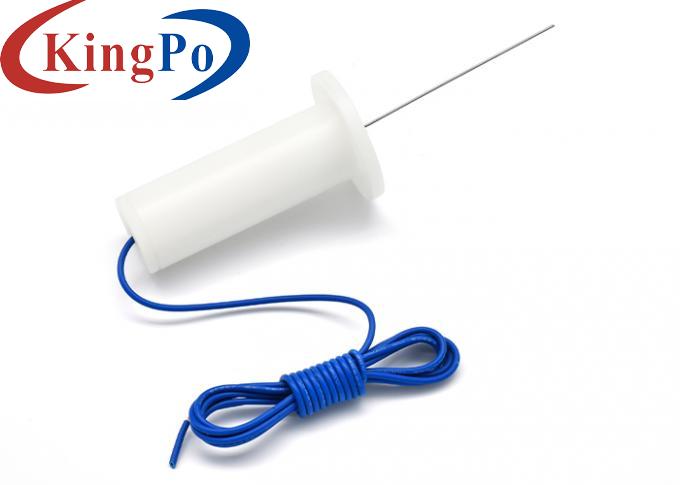

Gauge for Checking Non-accessibility of Live Parts, Through Shutter



Product information:



These two test probes separately confirm to the IEC 60884-1:2013 clause 10.5, figure 9 and figure 10. The SN2110 test probe with 20N force is used to test whether the live parts inside can be touched. The SN2110-A test probe with 1N force is for testing whether the live parts with the protection of socket can be touched.



Technical parameters:



1. Test probe with force of 20N SN2110:

The probe part: 3+0.03 0 ×1+0.015 0 ×80±0.5; end rounded: R0.2±0.05, with 20N force.

2. Test probe with force of 1N SN2110-A:

The probe part: Φ1+0.015 0 ×80±0.5; end rounded: R0.05, with 1N force.



Application method:



Touching the specimen with the end of the probe and then respectively exert the force of 20N or 1N until the probe is bulged and the A-A surface is abreast with the B-B surface.
