Hand - Held Protection Against Water Jets IPX5 IPX6 6.3 Mm Or 12.5 Mm
Products Description

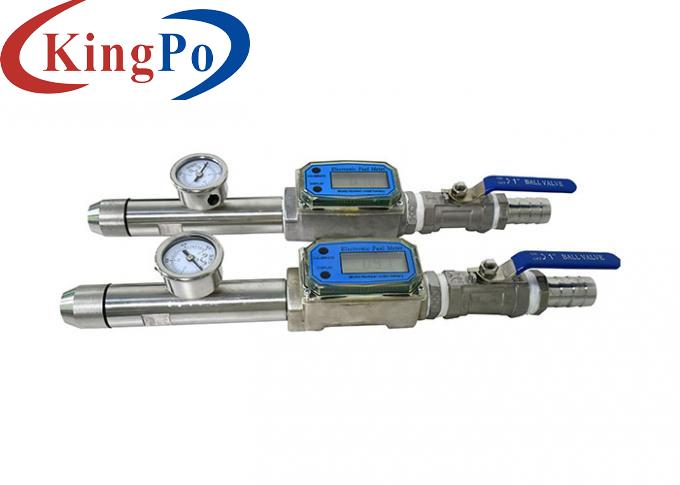

IPX5/6 Ф6.3mm Ф12.5mm Hand-held Protection Against Water Jets
Overview:
Water Jets is used to test electrical and electronic products, automotive and motorcycle parts, home appliances, seals and lamps for the performance of equipment and components under Water spraying conditions. The purpose is to verify the protection of the enclosures against Water spraying at IPX5 and IPX6 levels.
Structure:
This device is manufactured according to IEC60529:2013.
Place of use: temperature 15-35°C, relative humidity 25%-75%, atmospheric pressure 86 ~ 106kpa (860mbar-1060mbar), the ground should be flat, with lighting, water and drainage function is good
Technical Parameters:
Hand-held Protection Against Water Jets:
By controlling the flow of Water supply to ensure that the Water jet reaches the required speed, the housing of the test equipment is subjected to Water jet test in all possible directions.
Meet the standard: IEC60598-1:2014 and IEC60529:2013
Use water source: clean water or tap water without impurities, and distribute water to clean the filter
Model
SN447 A
SN447 B
Nozzle Internal Diameter
Ф6.3mm
Ф12.5mm
Delivery Rate
12.5±0.625L/min, flow meter is adjustable
100±5 L/min, flow meter is adjustable
Distance from Nozzle to Enclosure Surface
2.5~3m
2.5~3m
Core of the Substantial Stream
Circle of approximately 40 mm diameter at 2.5 m distance from nozzle
Circle of approximately 120 mm diameter at 2.5 m distance from nozzle
Test Duration
Likely 1min/m² (minimum: 3 min)
Likely 1min/m² (minimum: 3 min)
Pressure Gauge
0~0.25MPa
0~0.25MPa
Optional
0-18L/min rotameter, flexible hose
20-120L/min rotameter, flexible hose
