IEC 60065 2014 Clause 9.1.1.3 Test Probe 18 Ф8.6mm Children Finger Probe
Products Description
IEC 60065:2014 clause 9.1.1.3 Test Probe 18 Ф8.6mm Children Finger Probe
Product Overview:
This probe conforms to the standard requirements of IEC 60065:2014 clause 9.1.1.3, IEC 61032 figure 12 test probe 18 and etc. This probe is intended to simulate access to hazardous parts by children of more than 36 months and less than 14 years.
Probe Dimension:
Please refer to the relevant standards.
Take IEC 60065:2014 clause 9.1.1.3 as an example:
The test is repeated using small finger probes according to test probes 18 and 19 of IEC 61032:1997. This does not apply if the intended conditions of use prevent the apparatus from being accessed by children.
The test probe doesn’t have built-in force, if specific applied force required, the test probe should work together with a force gauge (use a force gauge to apply required force on the end of the probe directly).

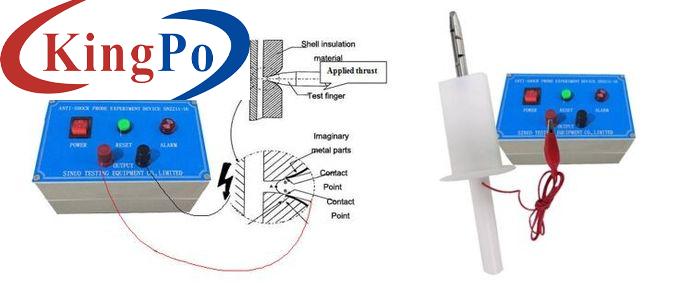

The probe is equipped with a connection cable, for verifying whether the LIVE PARTS touched, recommended to work with our anti-shock probe experiment device or a 40~50V voltage indicator. Connect the connection cable of the probe with one terminal of the anti-shock probe experiment device, and then use an additional cable to wire the LIVE PART of specimen with the other terminal of the anti-shock probe experiment device. Showing as following reference picture:
Details
Hemispherical radius (mm)
R4.3±0.05
Finger probe diameter (mm)
Ф8.6±0.1
Finger probe length (mm)
57.9±0.15
Axes of joints distance (mm)
19.3
Collar diameter (mm)
Ф38.4±0.3
Collar length (mm)
101.6±0.3
Extension handle diameter (mm)
Ф38.1±0.3
Extension handle length (mm)
451.6±0.8
Finger probe material (mm)
Stainless steel
Collar and handle material (mm)
Nylon
