IEC 60068-2-75 Test Eha 2J 5J 10J 20J Striking Element Electromagnet Release Impact Test Apparatus
Products Description
IEC 60068-2-75 Test Eha 2J 5J 10J 20J Striking Element Electromagnet Release Impact Test Apparatus
Standards & Clauses:
IEC60068-2-75:2014 “Environment testing for electric and electronic products Part2: Test methods -Test Eh: Hammer tests IDT”
IEC60598-1:2017 “Luminaries-Part1: General requirements and tests”
IEC62262:2002 “Degrees of protection provided by enclosures for electrical equipment against external mechanical impacts (IK code) ”
Samples and Restrictions:
Enclosures of household and similar electronic and electrical products, luminaires
Application:
It is used for the impact resistance test of the enclosures of household and similar electronic and electrical products and their accessories, luminaires, etc., to assess the safety performance and strength level of the products.
Test Principle:

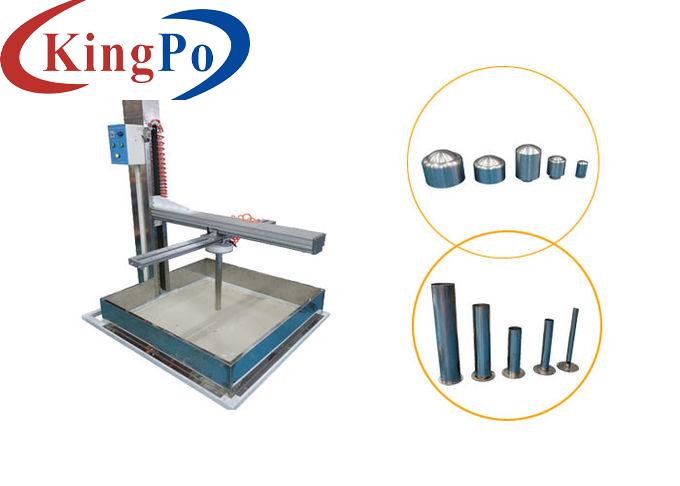

Test Eha:Pendulum Hammer, the striking element is free released at a certain height through a 1 m pendulum tube,impact the specimen at the lowest point in the vertical direction, after the conversion of gravitational potential energy to kinetic energy, to achieve the purpose of impact test on the sample.
Structure:
Cantilever frame,electric lift, the striking element is released by the electromagnet, fix the striking element to the height of fall through the conduit, the impact point is adjusted by XY axis movement.
Technical Parameters:
Striking Elements
(Equivalent Mass)
Table 1 Striking element characteristics
≤1
±10%
2
±5%
5
±5%
10
±5%
20
±5%
50
±5%
Table 2 Height of Fall
Table 3 Relationship of IK code and corresponding energy
Note 1. If higher impact energy is required, the recommended value is 50J.
Note 2: Some other standards use a single digit to indicate the specified impact energy. To avoid mixing with it, the feature number is represented by two digits.
Energy / J
2, 5, 10, 20, 50J are optional
500g,1.7kg,5 kg,5 kg,10 kg ,please refer to the following table 1
Conduit
Each striking element is equipped with a dedicated conduit
Impact Point
The device has X and Y axis guides to move the release device over the entire bottom area
Height of Impact Point
0-1000mm,electric adjustable
Height of Fall
Please refer to table 2, fixed by the conduit
Release Method
Electromagnet release
Bottom Plate
Nylon base plate thickness 8mm, hardnessHRR85-100,1000m×1000m
Energy / J
Equivalent Mass ±2%kg
0.25(0.2)
0.5
1.7
5
5
10
Material
Nylon
Steel
R/mm
10
25
25
50
50
50
D/mm
18.5(20)
35
60
80
100
125
f/mm
6.2(10)
7
10
20
20
25
r/mm
-
-
6
-
10
17
l/mm
Adjusted according to the Equivalent Mass, see Appendix A
Energy /J
0.14
0.2
(0.3)
0.35
(0.4)
0.5
0.7
1
2
5
10
20
50
Equivalent Mass /kg
0.25
(0.2)
0.25
(0.2)
0.25
(0.2)
(0.2)
0.25
0.25
0.25
0.5
1.7
5
5
10
Height of Fall ±1%mm
56
(100)
80
(150)
140
(200)
(250)
200
280
400
400
300
200
400
500
Note 1, see note 3.2.2; Note 2, the energy unit of this part of the joule (J) is derived from the standard gravity acceleration (g), the whole value of g round: 10m / s2.
IK Code
IK00
IK01
IK02
IK03
IK04
IK05
IK06
IK07
IK08
IK09
IK10
Energy / J
a
0.14
0.2
0.35
0.5
0.7
1
2
5
10
20
a Unprotected according to this standard
