IEC 60068-2 Lithium Battery Explosion Proof High And Low Temperature Test Chamber
Products Description
IEC 60068-2 Lithium Battery Explosion Proof High And Low Temperature Test Chamber
Standards For Lithium Battery Explosion Proof High And Low Temperature Test Chamber:
IEC60068-2-1:2007 “Environmental Testing-Part 2-1: Tests-Test A: Cold, IDT”
IEC60068-2-2:2007 “Environmental Testing-Part 2-1: Tests- Test B-Dry heat, IDT”
IEC60068-2-78:2012 “Environmental Testing-Part 2-78: Tests-Test Cab: Damp heat, steady state, IDT”
IEC60068-2-30:2005 “Environmental Testing-Part 2-30: Tests-Test Db: Damp heat, cyclic (12h+12h cycle), IDT”
Product overview For Lithium Battery Explosion Proof High And Low Temperature Test Chamber:
This series of products are suitable for aerospace products, information electronic instruments, materials, electricians, vehicles, metals, electronic products, and various electronic components in high and low temperature or humid and hot environments, testing their performance indicators and quality management purposes. The high and low temperature damp heat test box, also known as artificial simulated environment test box, is used to test the heat resistance, cold resistance, dry resistance and temperature resistance of various materials. Suitable for quality management of plastic products, electronics, electrical appliances, food, vehicles, metals, chemicals, building materials and computers.
Technical Parameters For Lithium Battery Explosion Proof High And Low Temperature Test Chamber:
1. (Air) test space cooling, heating, humidification, dehumidification;
2. According to the temperature and humidity settings, the test space reaches the set temperature and humidity
3. Each function can be operated independently
Air conditioning channel
The ambient temperature of the equipment should be kept within 0℃～+35℃
When the ambient temperature is lower than 0°C, (the equipment has been stopped for a long time), the water retained in the equipment should be drained to prevent the water in the pipeline from freezing and swelling and damaging the pipeline.
Volume and Size
Volume
225L

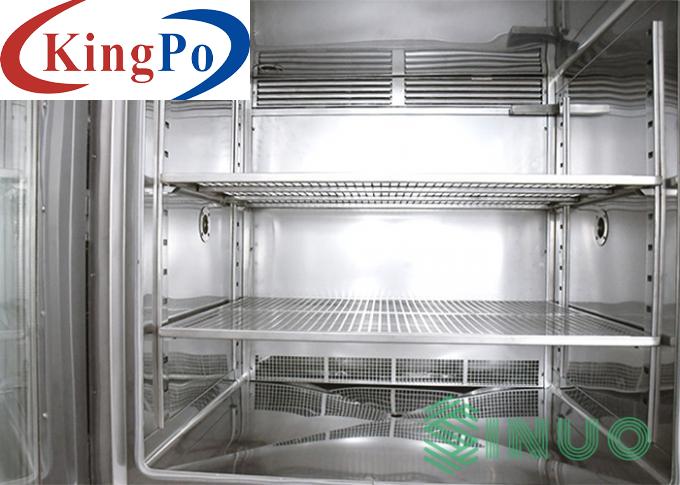

Test inner box size
600×500×750 mm (D×W×H)
Device size
About 850×1550×1710 mm (D×W×H)
Specimen Limit
This test equipment prohibits the test of flammable, explosive and volatile substances samples; the test of stored corrosive substances, the test of stored organisms, the test and storage of samples of stored strong electromagnetic emission sources
Main performance technical parameters
Functional requirements
Test environmental conditions
The ambient temperature is +25℃, the relative humidity is less than or equal to 85%, and there is no sample in the test box
Temperature and humidity range
Temperature range
-70℃～+180℃
Humidity range
20%～98% R.H
Test area heating and cooling time
Heating time
-70℃～+180 ℃ ≤120min
Cooling time
+20℃～-70 ℃ ≤90min
Control precision
Temperature fluctuation
±0.5℃
Temperature deviation
±2.0℃
Evenness
±2.0℃
Relative Humidity Deviation
±3.0%RH (when humidity>75%RH) ±5.0%RH (when humidity≤75%RH)
Structure
Outer chamber material
Electrolytic plate spray treatment
Internal chamber material
SUS#304 stainless steel. (spray insulating paint)
Box insulation material
Rigid polyurethane foam + glass fiber
Door insulation
Rigid polyurethane foam + glass fiber
Centrifugal fan, heater, evaporator (also dehumidifier), water supply and drainage outlet, humidifier, dry burning preventer, dry and wet bulb overtemperature sensor, wet bulb water tank
Cooling method
Forced convection air-cooled
Water supply method
Pump lift
Heater
U-TYPE adopts imported stainless steel SUS#304 to make electric heating tube heater
Humidifier
The humidification barrel is made of SUS#304 stainless steel, and is equipped with a water level observation window and a water level solenoid valve
water supply location
Front lower fixed water tank for easy water supply
Storage tank volume
25L
Water quality requirements
Resistivity≥500Ω·m
Maximum power
18KW
Maximum current
32A
Requirements for storage environment
Weight
About 900 kg
