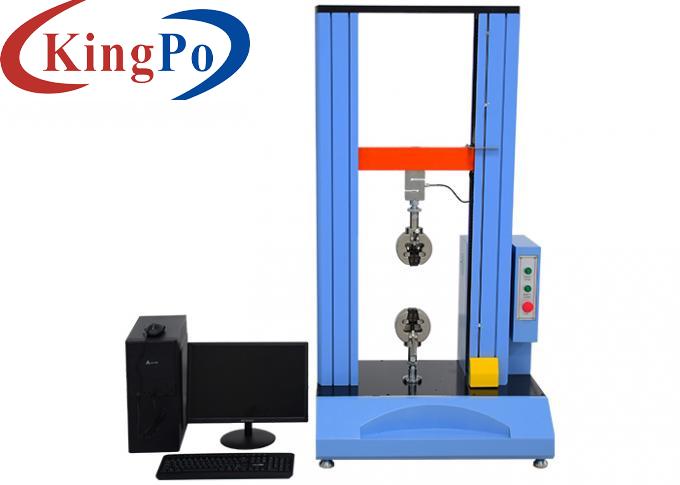

IEC 60245-1 Tensile Strength Test Machine Test Range 2000N Computer Control
Products Description
IEC 60245-1 Tensile Strength Test Machine Test Range 2000N Computer Control
Product overview:
Standard: according to IEC60245-1-2008 clause 5.6.3.4, IEC60245-2-1998 clause 3.4, IEC60227-1:2007 clause 5.6.3.4, IEC60227-2:2003 clause 3.4 and clause 3.6.
Samples and restrictions: Elevator cable center cushion core.
Application: Expansion strength test for elevator cable center cushion core.
Test principle: Configure the tension clamp, take a 1m long sample from the finished cable and weigh it. Peel off all coverings within 0.2m from both ends of the specimen and remove the insulated wire core. The central pad core including the central load-bearing core should withstand a tensile force equivalent to the mass of 300m of cable. The pulling force should be applied for 1 minute.
Usage environment: Power supply: AC220V±10%/50-60Hz, 1kw, working temperature 0-40℃, humidity 30%-90%.
Technical specifications:
Equipment dimensions
About: 500×500×1600 (mm) W×D×H
Equipment weight
100kg
Maximum test force
2000N
Test force display range
0～500kg
Test force classification
There is no binning throughout the process, and the resolution remains unchanged throughout the process.
Test force measurement accuracy
Better than ±1% of the indication value
Displacement resolution
0.01mm
Displacement measurement accuracy
Better than ±1% of the indication value
Crossbeam moving speed range
25mm/min～500mm/min stepless speed regulation, speed can be set arbitrarily
Displacement speed control accuracy
Better than ±1%
Stretch space
0～1000mm
