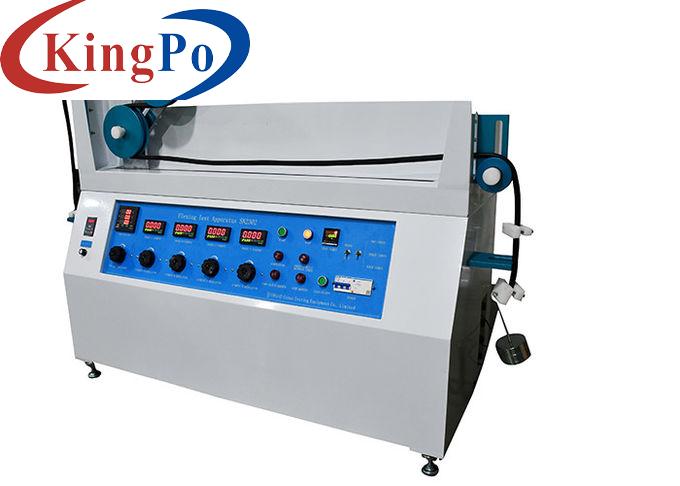

IEC 60245-1 Torvature Testing Machine 1 0.33m/S For Finished Flexible Cables
Products Description
IEC60245-1 Torvature Testing Machine 1 0.33m/S For Finished Flexible Cables
Technical Characteristics:
Power Supply
3 phase 5 wires 220VAC/ 60 Hz or 380V/50Hz
Load Current
0.5~25A, adjustable
Load Voltage
Line-to-line voltage 10~400V adjustable
Testing speed
0.33m/s
Testing distance
1000±20mm
Suitable cores
2-18
Nominal cross-sectional area
0.2~4mm2
Diameter of pulleys
60, 80, 120, 160, 200mm
Test weights
2*0.5kg with hook, 2*0.5kg with hole, 6*1kg with hole, 2*6kg with hook
Equipment overview:
This test instrument can meet the test requirements of domestic and international standards and can be widely used. It has a precision digital meter, so it can accurately measure smaller or larger current voltages. The pulley replacement method is simple and convenient. The test equipment adopts chain drive mechanism with stable performance and low noise.
The tester is designed and manufactured in accordance with IEC 60227.2 Article 3.1, Figure 1, IEC 60245.2 Article 3.1, Figure 1, IEC60245-1 Article 5.6.3.1 and other standards. It meets the requirements of the relevant standards for mechanical strength bending test of rubber-plastic wires and cables. This test does not apply to flexible cables with a nominal cross-sectional area of the core greater than 4mm2 , and cables with more than 18 cores and more than two concentric layers.
