IEC 60309-1 Fig 7 Green Car Accessories Mechanical Strength Impact Test Apparatus
Products Description

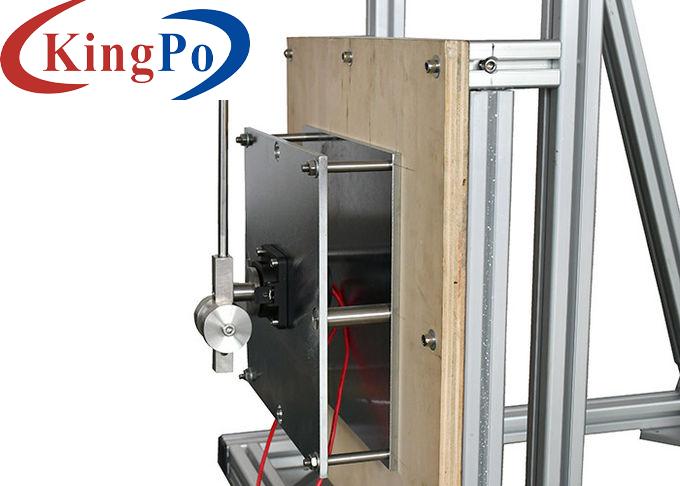

IEC60309-1 Green Car Accessories Mechanical Strength Impact Test Apparatus
0.5Kg (low energy) (2 pieces of 0.25Kg weights),
Counterweight and impact energy:
The experimental principle is that after the gravitational potential energy is converted into kinetic energy, the equivalent mass impact weights will be freely released at a certain height to achieve the required impact energy.
The mounting bracket can be adjusted in three-axis, front and back, up and down, and left and right, which has strong applicability.
Operation Method
Manual operation
Impact Weight
50*16mm; 304# stainless steel 0.25Kg impact weights
Combined Impact Weight
1Kg (high energy) (4 pieces of 0.25Kg weights)
Impact Energy
1～6J (The impact weights can be interchangeable)
Hammer Anvil
Ф50 mm
Impact Angle
25°, 35°, 36°, 42°, 47°, 52°
Pendulum Support Structure
Can move back and forth, left and right, up and do and can rotate 90°
Pendulum Material
Steel pipe with outer diameter of 10 mm and wall thickness of 1.0 mm
Pendulum Length
1m, from the pivot to the center of the impact element
Mounting Plate
8mm thick stainless-steel plate, made according to the customer's specified aperture and position, default one set
Impact Height
776mm, 833mm
Vertical Backboard Material
Plywood
X/Y/Z Axis Stroke
Movable range is greater than 300 mm
Choose the counterweight and drop angle according to the impact energy. If the impact energy is ≤2J, add two counterweights at the upper hole position and with one weight on each side, the total mass is 0.5kg; if the impact energy is >2J, add two more counterweights at the lower hole position and with two weights on each side, the total mass is 1Kg.
Counterweights of the impact energy and the impact angle are shown in following Table:
Impact energy(J)
Counterweights(Kg)
Release angle
1
0.5
25°
2
0.5
35°
3
1
36°
4
1
42°
5
1
47°
6
1
52°
