IEC 60320-1 2021 Clause 18.2 Coupler Heating Test Equipment For Heat Resistance Test
Products Description
IEC 60320-1: 2021 Clause 18.2 Coupler Heating Test Equipment For Heat Resistance Test
Standard & Clause:
IEC60320-1:2021 "Appliances couplers for household and and similar general purposes- Part1: General requirements" clause 18.2 and figure 5.
Product Overview:
Specimen and limitations: Appliance couplers under hot or extreme heat conditions.
Test purpose: used to evaluate the heat resistance performance of appliance couplers under thermal conditions or extreme heat conditions.
Test principle: Only applicable to connector testing under thermal conditions and extreme heat conditions specified in IEC60320-1.

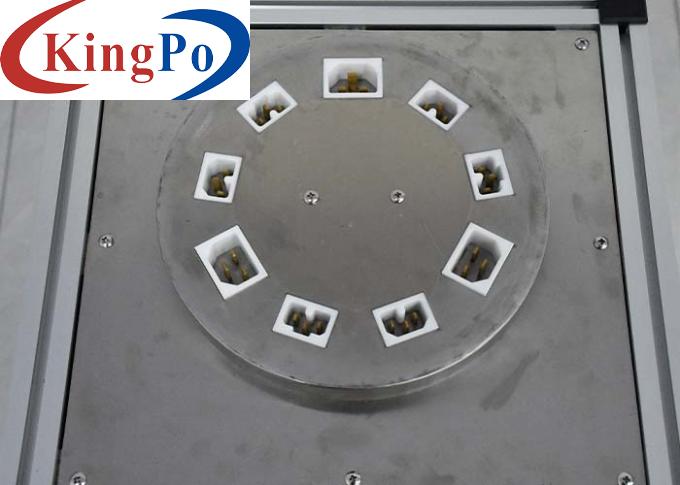

Equipment structure and characteristics: The device consists of a control cabinet, a mounting plate, a heating device, and an appliance input socket (standard configuration is 10A heat-resistant, 10A extreme heat-resistant, and 16A extreme heat-resistant).
Usage environment: Power supply: AC220V±10%/50-60Hz, working temperature 5-35℃, humidity 30%-90%.
Technical Parameters:
Test station
Single station
Electrical control method
Button control, digital display
Heating method
Electric heating, RT+10~160℃±2℃, can be preset
Test items
10A heat-resistant appliance input socket: test 10A connector, test temperature 120°±2°;
10A extreme heat resistant appliance input socket: test 10A connector, test temperature 155°±2°;
16A extreme heat resistant appliance input socket: test 16A connector, test temperature 155°±2°;
Test time
0-99 hours and 59 minutes can be preset;
Coupler center distance
Arranged uniformly in a circle of Φ175
Standard gauge
Standard configuration: 3 heating gauges each for 10A heat resistance, 10A extreme heat resistance and 16A extreme heat resistance
