IEC 60320-1 2021 Coupling Force Transverse Tension Test Device For Input Sockets Test
Products Description
IEC 60320-1: 2021 Coupling Force Transverse Tension Test Device For Input Sockets Test
Standards & Clause:

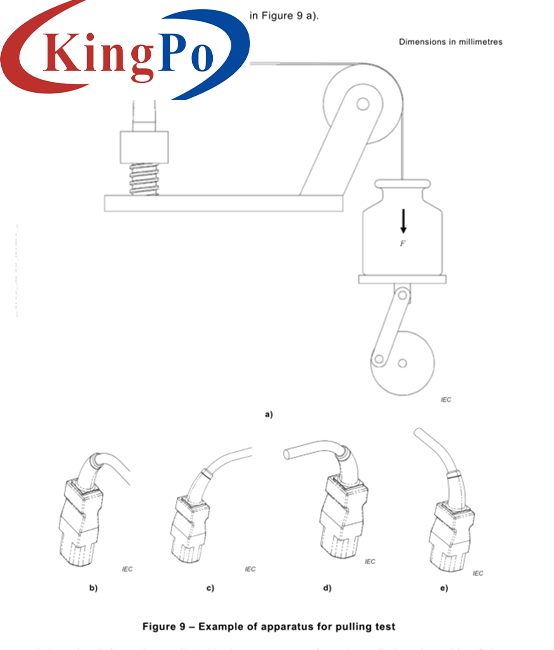

IEC 60320-1:2021 "Appliances couplers for household and similar general purposes- Part1: General requirements" clause 23.3, 23.6.2, 23.6.3, figure 9 and table 12 and table 13.
Product Information:
Sample and limitations: connectors/plug connectors and appliance input sockets with ratings greater than 0.2A, and appliance input and output sockets with connectors/plug connectors with separate front parts
Test purpose: Suitable for lateral pull test of connectors and appliance input sockets
Testing principle: Insert the connector into the input socket of the appliance that is consistent with its model and complies with the standard loose leaf, and uses the motor to drive the tray to lift and release the weight, thereby achieving lateral force application and vertical tension testing of the sample.
Equipment structure and characteristics: The connector test should be equipped with an appliance input socket that is consistent with its model and complies with the standard loose leaf.
Technical parameters:
1. Cyclic pulling force mode: Table 12 pulling force, pulling 50 times in each of the four directions, each time lasting 1±0.5s
2. Straight pulling force mode: Table 13 pulling force, lasting 60±0.5s
3. Horizontal tension mode: Table 13 tension, lasting 60±0.5s in each of the four directions
Test station
Single station
Flexible cable bending height
40mm, adjustable
Power supply
AC 220V, ±50Hz
Control method
PLC control, touch screen operation
Drive mode
Electric
Test mode
Working temperature
5-35℃
Humidity
30%-90%
Test times
0-999999 times, can be preset
Pull force range
6, 25, 35, 50, 75, 100N, combined weight implementation
Pulling method
Motor-driven pallet lifting and weight release implementation
Cable selection and corresponding pull value table
Sample installation fixture
Can be rotated 4-90°
