IEC 60335-1 Clause 21 And Annex B.101 Tumbling Barrel Free Fall Test Apparatus
Products Description

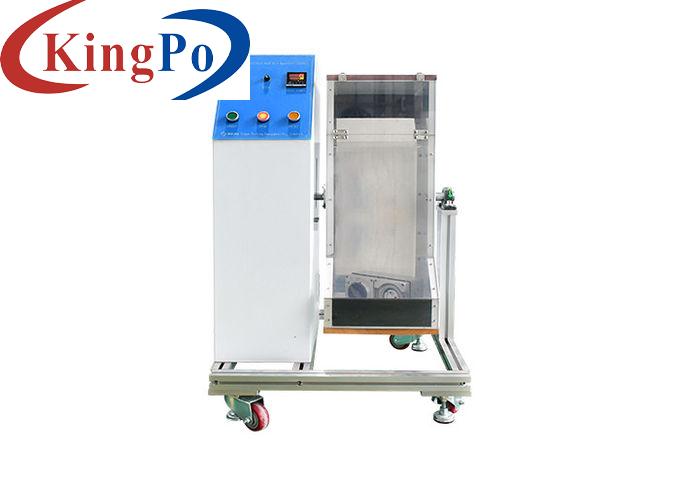

IEC 60335-1 Clause 21 And Annex B.101 Tumbling Barrel Free Fall Test Apparatus
Standards & Clauses:
This Tumbling Barrel Free Fall Test Apparatus conforms to the standard requirements of IEC 60068-2-32 - test procedure 2, required by required by IEC 60335-1 clause 21 and Annex B.101, IEC 60335-2-101:21.101, IEC 60065:2014 clause12.3, etc.
This device is suitable for test the drop resistance of plugs and socket-outlets, surface type mounting boxes, screw glands, gland covers, switch and other electrical accessories.
The test times could be preset, and the test device will automatically stop when the test times reaches to the setting value. The operation of this device is easy.
Technical Parameters:
Rotate speed
5rpm
Drop rate
10time per min
Material
Sideways 1.5mm high-quality steel plate, upper and lower for 3mm steel pad in the 10-19mm wood and oblique part slide surface is plastic laminate, with triangle rubber pad
Test times
0~999999
Drop height
500mm
Barrel number
Single
Application
Plug and socket and similar electrical accessories
Power supply
220V,50Hz
Samples and Restrictions:
Plugs and sockets, plug-in ballasts/transformers and power sockets installed lamps, non-rewireable connectors.
Application:
It is used to perform free fall test for plugs and sockets, plug-in ballasts/transformers and power sockets installed lamps, non-rewireable connectors.
Test Principle:
The tumbling barrel is driven to rotate by the motor, then the specimen repeatedly free falls onto the specified surface at a specified height.
Structure:
The test equipment consists of electric control cabinet and tumbling barrel. The test times can preset, and the test will be stopped automatically after the preset test times are completed.
Equipment dimensions: about: 800 × 800 × 1100 (mm) W × D × H
Equipment weight: 100kg
Use Environment:
Power supply:AC220V±10%/50-60Hz or match client's local power supply requirements
Working temperature: 0-40 ° C, humidity: 30%-90%
