IEC 60335-1 Clause 22.32 Ceramic Material Fuchsine Spirit Pressure Test Apparatus
Products Description
IEC 60335-1 Clause 22.32 Ceramic Material Fuchsine Spirit Pressure Test Apparatus
Product Information For Ceramic Material Fuchsine Spirit Pressure Test Apparatus:
This ceramic material fushine spirit pressure test machine meets the requirements of IEC 60335-1 clause 22.32. It is use to determine if ceramic material is tightly sintered.

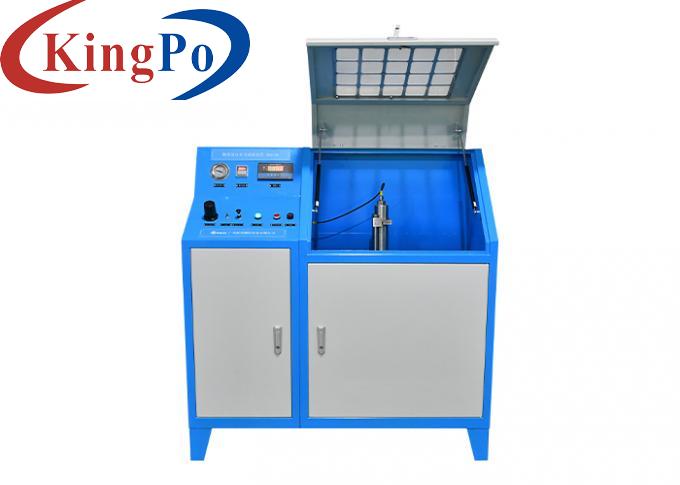

This test machine includes the test container, pressure boosting device and explosion-proof chamber with observation window, the whole operation is easy and safe.
It is use to determine if ceramic material is tightly sintered, consists of two parts: test container and pressure boosting device magenta.
Technical Parameters For Ceramic Material Fuchsine Spirit Pressure Test Apparatus:
Test Principle For Ceramic Material Fuchsine Spirit Pressure Test Apparatus:
The ceramic material is broken into pieces that are immersed in a solution containing 1 g of fuchsine in each 100 g of methylated spirit. The solution is maintained at a pressure not less than 15 MPa for a period so that the product of the test duration in hours and the test pressure in megapascals is approximately 180.
Test container
Volume >100ml, pressure bearing capacity >15mpa, made of stainless steel
Power supply
Match client's local power supply
Pressure hold time
0~99s can be set
Maximum test pressure
20mpa
Pressurization method
Manual pressurization
Test pressure range
0~20mpa±0.5mpa, can be adjusted
Boost rate
100kpa/s
Display mode
Digital display
Equipment dimensions
1200×500×1500(mm) W×H×D
Equipment weight
150kg
Power supply
AC220V±10%/50-60Hz,3KW
Test station
Single
Test pressure
0.5-20mpa±0.5mpa
Test completion reminder time
3 min
Test time
1~9999H
Container bottle
450ml
Solution
Configure
