IEC 60335-1 Impulse Voltage Generator For Household Appliance Max 12.5kV
Products Description
IEC 60335-1 Impulse Voltage Generator For Household Appliance Max 12.5kV

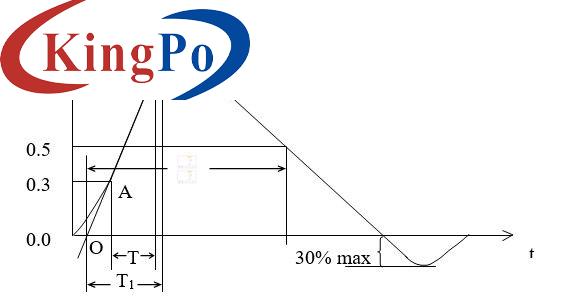

Impulse wavefront time: 1.2 µs ± 30 %;
Half value of after wave time: 50 µs ± 20 %
Note: the waveform can be checked by connecting an external oscilloscope
300-12500V
Low: 300 V~ 2,500V; High: 2,500 V~ 12,500V
Product Information For Impulse Voltage Generator:
Standard: Conforms to IEC60335-1 clause 14, IEC60065:2014 clause 10.2, 13.3.4 a), and IEC 60065:2014 clause 13.3.4 b), 14.2, IEC60950, etc.
Application: It is used to detect the transient over voltage of the components and the electrical clearance and the creepage distance.
Test sample: Household appliance, Audio, video, and similar electronic apparatus.
Feature: The sample breakdown will produce a spark and acoustic, instrument peak voltage than the no-load voltage is decreased substantially (close to zero), when applying the same voltage in the next test, it will also show the above phenomenon.
Technical Parameters For Impulse Voltage Generator:
Model
SN1104
DC high voltage
Max. 12.5kV
Impulse voltage wave
Instrument internal resistance
12Ω ± 10%
Internal resistance converter box
500Ω - 10% is optional
Peak voltage: 300 V~ 12,500V
Impact interval time
5 ~ 99s
Impact cycles
1 ~ 9999
Polarity
Positive and negative
Working power source
Rated voltage: ~ 220V±10%, 60Hz
Dimension
430mm×180mm×480mm
Weight
20 KG
