IEC 60335-2-14 Similar Test Probe B With φ125mm Circular Stop Face
Products Description

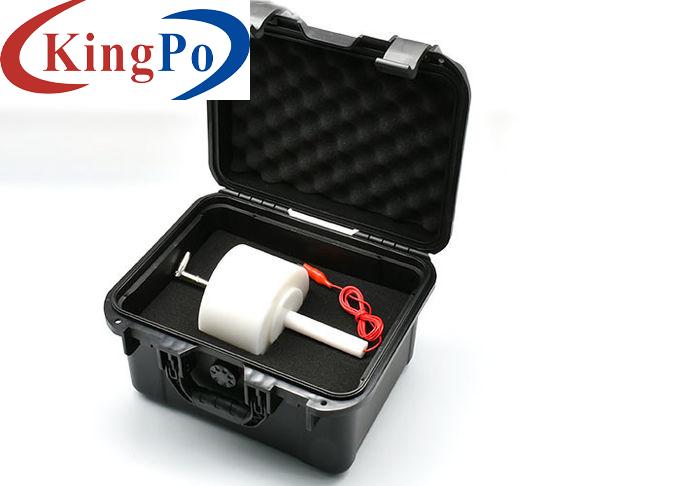

IEC 60335-2-14 Similar Test Probe B with φ125mm Circular Stop Face
Product information:
This is a precision test finger made in accordance with many standards like IEC 61032 figure 2, IEC 60529 IP2, IEC60950 figure 2A, IEC60884, IEC60335, UL507, and UL1278 figure 8.4. This probe is intended to verify the basic protection against access to hazardous parts. It is also used to verify the protection against access with a finger. This test finger probe consists of dito,finger,base and insulated handle which simulates the characteristics of the human hand. It has two movable joints, which can be curved at 90°.
Customizable: it can be used for anti-electric shock test when equipped with alligator clip, or used for enclosure protection test when open threaded hole of M6 at the end of the handle (connected with pull and push dynamometer).
Technical parameters:
SN2210-2B
Parameters /Model
Name
Test probe similar to test probe B of IEC 61032 but having a circular stop face with a diameter of 125 mm
Joint 1
30±0.2 (mm)
Joint 2
60±0.2 (mm)
Finger tip to stop face
100 (mm)
Finger tip to guard
180 (mm)
Stop face to guard
80 (mm)
Guard diameter
75 (mm)
Cylindrical
R2±0.05 (mm)
Spherical
S4±0.05 (mm)
Fingertip cutting bevel angle
37o 0 -10’
Fingertip taper
14 o 0 -10’
Test finger diameter
Ф12 0 -0.05 (mm)
Applied standard
IEC60335-2-14
