Skin Hair Care Electrical Appliance Testing Equipment Swivel Connection 50 r/min Rotation

Standards & Clauses:

IEC60335-2-23:2003 “Household and similar electrical appliances-Safety-Part2-23: Particular requirements for appliances for skin or hair care” clause 11.101

Samples and Restrictions:

Appliances incorporating a swivel connection, such as hair appliances

Application:

It is used to detect the temperature rise of sliding contacts shall not exceed 65K after appliance’s normal rotation.

Test Principle:

One end of the sample is fixed, and rotation action of the other end is driven to by the motor. At the same time, rated voltage and 1.25 times of rated current is applied to the sample, and the weight of 1N is hung on the flexible cord of the sample, to make the energized sample rotating at a certain rate under load, then measure the temperature rise of the sliding contacts after preset test times is completed.

Structure:

Floor-standing structure is adopted. Controlled by PLC and touch screen operation. The test times, test rate can be preset, and voltage and current load is built-in. The turntable is rotated 20 times at a rate of 50R / minute and then reversed 20 times. The equipment will be automatically stopped after the preset test times is completed.

Equipment dimensions: about: 800 × 800 × 1300 (mm) width × depth × height

Equipment weight: 160kg

Power Supply

Power Supply: AC220V±10%/50-60Hz, 10KW or match client's local power supply

Technical Parameters:

Test Station	Single
Control Method	PLC intelligent integrated control, 7-inch humanized touch screen operation
Drive Mode	Servo motor drive
Sample Clamping Method	Mechanical clamping, the position of clamping point is adjustable
Rotation Angle	0-360° is adjustable arbitrarily
Test Speed	0-60 r/min, default 50 r/min
Positive / Negative Rotation Times	0~999999 can be preset, default 20 times
Total Test Times	0~999999 can be preset, default 1500 times
Weight	1N,5N,10N
Load Voltage & Current	Voltage 200-260V, Current 0-15A adjustable
Accessory	With portable infrared thermometer
Remark	The device is compatible with small household appliance’s flexing test

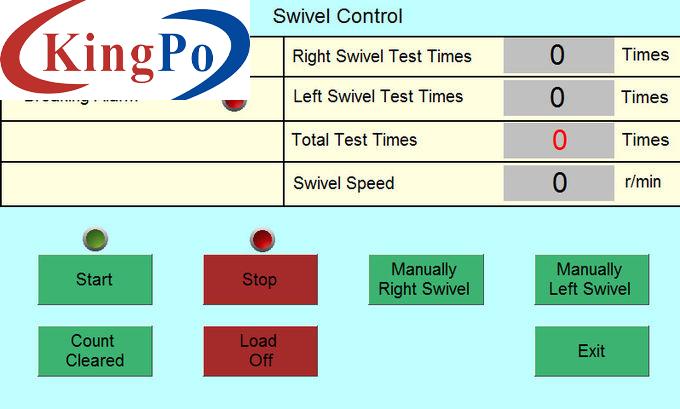

Software Interface (for reference)
