IEC 60335-2-24 Figure BB.1 Electrical Appliance Testing Equipment For Water Evaporation For Accumulation Of Frost

MOQ:1
Price:Customized
StandardPackaging:CartonBox
DeliveryPeriod:10Days
PaymentMethod:L/C,,T/T,WesternUnion,MoneyGram
SupplyCapacity:100pcspermonth

Place of Origin：China

Brand Name：KingPo

Certification：Calibration Certificate (Cost Additional)

Model Number：KP1202

Test Standard：IEC 60335-2-24

Standard Figure：Figure BB.1

Enclosure Material：PVC Or Bakelite

Thermal Plate：Red Copper Plate

Heat Source：5W Incandescent

Output Voltage：5-220V Adjustable

Minimum Order Quantity：1

Price：Customized

Packaging Details：Carton Box

Delivery Time：10 Days

Payment Terms：L/C, , T/T, Western Union, MoneyGram

Supply Ability：100 pcs per month

Highlight：ac hipot test equipment, glow wire test equipment

Product Description

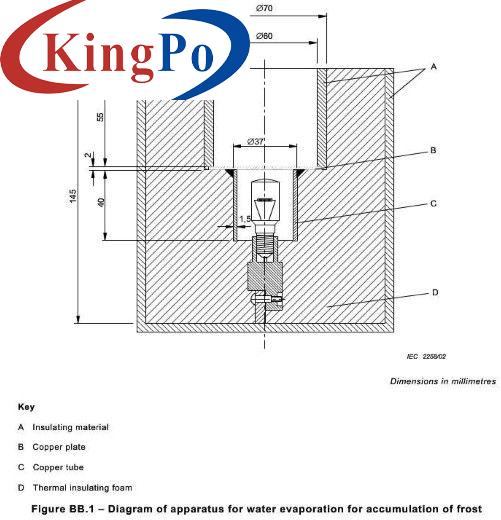

IEC 60335-2-24 Figure BB.1 Apparatus for Water Evaporation for Accumulation of Frost

Standards & Clauses:

The apparatus for water evaporation for accumulation of frost is designed in accordance with IEC 60335-2-24 clause 11 and Annex BB (figure BB.1).

Samples and Restrictions:

Refrigerating appliances, such as refrigerators, ice-cream appliances and ice-makers.

Application:

It is used for water evaporation for accumulation of frost.

Technical Parameters:

Power Supply	Match client's local power supply
Enclosure Material	PVC or Bakelite
Thermal Plate Material	Red copper plate
Heat Source	5W incandescent
Output Voltage	5-220V adjustable
Display Method	Digital Display
Weighing Mode of Consumed Water	Digital display electronic balance (should be prepared by user)
Injection Modes	Manual injection
