IEC 60335-2-29 Fig 101 Charger Normal Operation Test Apparatus For Battery Charger Test
Products Description
IEC 60335-2-29 Fig 101 Charger Normal Operation Test Apparatus For Battery Charger Test
Product information:
Charger Normal Working Test Equipment is a professional testing equipment that simulates the normal working conditions of a battery charger under load. Designed according to GB/T4706.18-2014/IEC60335-2-29:2010 relevant standards. This equipment mainly consists of DC power supply, capacitive load, resistor and control system. It adopts 7-inch industrial control screen for operation and display, and is controlled by PLC. It has the characteristics of easy operation, automatic parameter setting, one-click start, and high stability.

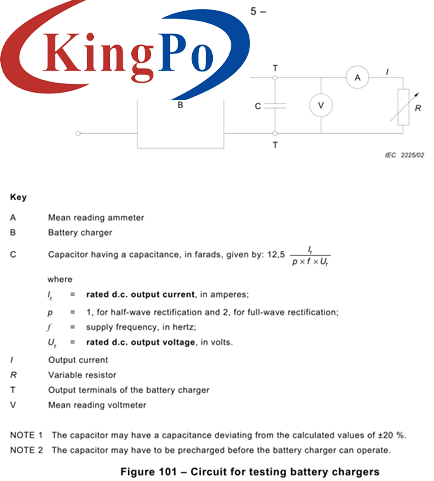

Test schematic diagram:
Technical Parameters:
Temperature: 5℃ ~ 40℃, indoor
Humidity: less than 75% RH, no frost
Precharged DC power supply
Output voltage range
0~100V
Output current
0~6A
Voltage/current display resolution
0.1V/0.001A
Display accuracy
±1%RD±0.5%FS
Capacitance
Capacitance range
1000uF~100mF
Minimum resolution
1000uF
Gear selection
Automatic selection
Volumetric accuracy
±20%
Resistance
Resistance range:
0.1~100Ω
Rated current
20A
Minimum resolution
0.1Ω
Gear selection
Automatic selection
Volumetric accuracy
±20%
Control system
Charger output voltage range
12~72V
Maximum output current
20A
Precharge voltage range
0 to 72V, can be set.
Voltage detection range
0~100V
Display resolution
0.01V
Display accuracy
±1%±0.5%FS
Current detection range
0~20A
Display resolution
0.001A
Display accuracy
±1%±0.5%FS
Control mode
PLC
Display mode
7 inch display
Test station
1 station
Working environment
Equipment size
450X550X235mm
