IEC 60335-2-7 Tumble Washing Machine Door Endurance Testing Equipment
Products Description
IEC 60335-2-7 Tumble Washing Machine Door Endurance Testing Equipment
Standards For Tumble Washing Machine Door Endurance Testing Equipment:
Standard: IEC60335-2-7:2016 “Household and similar electrical appliances-Safety-Part2-7:Particular requirements for washing machines” clause 18.101 and 22.104.
Main Specifications For Tumble Washing Machine Door Endurance Testing Equipment:
Tumble washing machine door interlocking device endurance test (IEC 60335-2-7 clause 18.101)
Pull test when the interlock device is actuated to lock the tumble washing machine door (IEC 60335-2-7 clause 22.104)
Purpose, principle and structure of apparatus For Tumble Washing Machine Door Endurance Testing Equipment:
It is used to test the durability of the interlocking device of tumble washing machine door, and the force test when the interlock is actuated, so as to verify the reliability of the interlocking device; also used to assist other tests for repeated opening and closing operations of the tumble washing machine door.

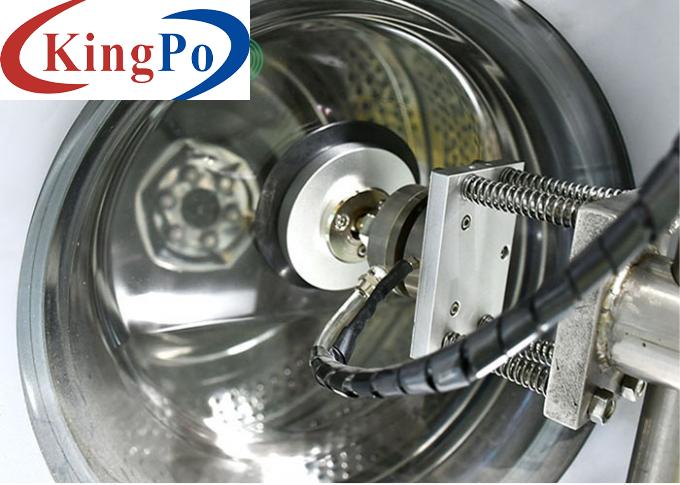

The equipment combines of electrical control cabinet (including load voltage regulating device), frame and manipulators. There is one testing station for testing tumble washing machine with door.
Precautions For Tumble Washing Machine Door Endurance Testing Equipment:
The operating angle must be confirmed before the suction cup of the manipulator and the sample cover are sucked together, otherwise the sample will be damaged.
Before starting the voltage, the voltage adjustment knob must be adjusted to the minimum position.
Lubricate the manipulator regularly.
Power Supply
AC220V±10%/ 50 Hz, power 3KW
Test Stations
One station, for testing tumble washing machine with door, both left and right door can be supported
Control Method
PLC intelligent integrated control, 7-inch humanized touch interface operation
Drive Mode
Servo motor drive
Clamping Method for Specimen
Vacuum suction cup, pneumatic
Door Opening or Closing Speed
0-360°/s(1.5m/s), can be preset
Door Opening or Closing Angle
0-130°, can be preset
Test Times
0-999999times, can be preset
Door Opening or Closing Force
0-200N, can be preset (the opening force value is only for the pull test when the interlock device is actuated to lock the door)
Load Voltage
0-250V, adjustable
Auxiliary Action Mechanism
Washing machine starts pressing cylinder (can be customized)
Test Contents
Safety Protection
Power
Leakage protection, overload and short circuit protection
Motor
Overload, short circuit protection
