IEC 60335-2 Cordless Kettle Irons Blenders Stand And Withdrawn Endurance Test Apparatus
Products Description
IEC 60335-2 Cordless Kettle Irons Blenders Stand and Withdrawn Endurance Test Apparatus
Standards For Cordless Kettle Irons Blenders Stand and Withdrawn Endurance Test Apparatus:
The Cordless Kettle Irons Blenders Stand and Withdrawn Endurance Test Apparatus conforms to the standard requirements of IEC 60335-2-3: clause 22.101, IEC60335-2-3: clause 22.105, IEC60335-2-15: clause 22.103, IEC60335-2-14: clause 22.103 and etc.
Application For Cordless Kettle Irons Blenders Stand and Withdrawn Endurance Test Apparatus:
The appliance coupler of cordless appliances shall be constructed to withstand the stresses occurring during normal use, which is verified through insertion and withdrawn testing.
Technical Parameter For Cordless Kettle Irons Blenders Stand and Withdrawn Endurance Test Apparatus:
Built-in voltage 0-250V,current 0-15A adjustable,
without built-in voltage and current can be optional
Product overview For Cordless Kettle Irons Blenders Stand and Withdrawn Endurance Test Apparatus:

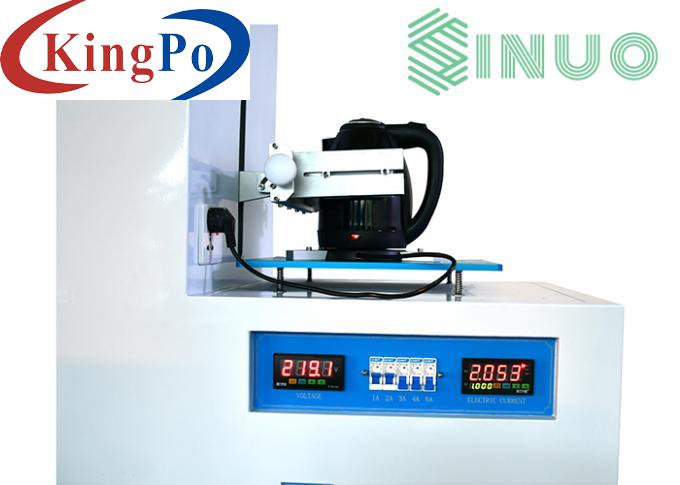

The apparatus is used to test the connection contacts of cordless electric irons, cordless kettles, cordless coffee pots, and cordless stirrers for household and similar purposes. The structure should ensure that any electrical or mechanical failures in normal use will not cause danger. Verify by plugging test.
Input power supply
AC220V±10%/50Hz, 6KW
Test station
Single (multiple stations can be customized)
Control method
PLC intelligent integrated control, 7-inch humanized touch screen operation
Drive mode
Servo motor drive
Sample clamping method
Mechanical clamping, the position of clamping point is adjustable; default with clamping fixture for cordless kettles, the clamping fixtures for cordless iron, cordless blenders and other cordless appliances should customized.
Stand & withdrawn stroke
0-100 mm, can be preset on touch screen
Test times
0-999999 times, can be preset
Conduction times
0-999999 times, can be displayed on the touch screen
Load power supply
Judgment
According to whether the current is conducting or not
Test contents
Cordless electric iron stand and withdrawn test (with/without load power supply); cordless kettle / cordless coffee maker stand and withdrawn test (with/without load power supply); cordless blender stand and withdrawn test (with/without load power supply)
Short-circuit the two conductive pins of the cordless electric iron, cordless kettle, cordless coffee maker, and cordless blender. The external load provides 1.1 times the rated current under the rated voltage, and then the motor drives the lifting mechanism to perform a certain number of plug life tests on the base at a rate of 10 times/min. The sample shall be subjected to a certain number of plug-in tests without power on. The device can be connected with an external load or an optional built-in load. The number of tests can be preset (up to 999999 times), and the number of tests and the number of conductions will be automatically recorded during operation. When the preset number is reached, the device will automatically stop.
