IEC 60335-2 Household Electrical Appliances Microwave Oven Door Endurance Tester

Electrical Appliance Testing Equipment

Products

MOQ:1
Price:Negotiable
StandardPackaging:ExportingPlywoodCase
DeliveryPeriod:30Days
PaymentMethod:T/T
SupplyCapacity:15SetsPerMonth

+86 769 81627526 skype++++ Chat Now

Products Description

Place of Origin：China

Brand Name：KingPo

Certification：Calibration Certificate (Cost Additional)

Model Number：KP1A01

Test Station：One Station

Power Supply：AC 220V, 50Hz

Control：Mitsubishi PLC

Test Times：0-999999 Preset

Open/Close Time：0-9999S Preset

Open Angle：0-180° Can Be Preset

Frame Structure：High Grade Aluminum Profile

Display：True Color Liquid Crystal Display

Minimum Order Quantity：1

Price：Negotiable

Packaging Details：Exporting Plywood Case

Delivery Time：30 Days

Payment Terms：T/T

Supply Ability：15 Sets Per Month

Highlight：Microwave Oven Door Endurance Tester, IEC60335-2 Microwave Oven Door Endurance Tester

Product Description

IEC 60335-2 Household Electrical Appliances Microwave Oven Door Endurance Tester

Standard For Microwave Oven Door Endurance Tester:

IEC 60335-2-25 household and similar electrical appliances – safety: part 2-25:particular requirements for microwave ovens, including combination microwave ovens, clause 18.

Technical Parameters For Microwave Oven Door Endurance Tester:

Control	Mitsubishi PLC
Display	True color liquid crystal display (7 Inch Touch screen)
Frame structure	High grade aluminum profile
Power supply	AC 220V, 50Hz
Test times	0-999999 preset, automatic stop when test time finished
Open/Close time	0-9999S preset
Open/Close rate	Adjustable
Open angle	0-180° can be preset
Station	One station (left open or top open)
Door unlocks	Eccentric wheel mechanism automatic unlocks the door lock
Dimension	10001000800mm
Load	Provided with a 10A power socket, can be used for samples below 2000W

Application For Microwave Oven Door Endurance Tester:

The device is used for mechanical endurance test to microwave oven door system includes a hinge structure, microwave seals and other related components.

Test sample: Microwave oven, oven

Feature For Microwave Oven Door Endurance Tester:

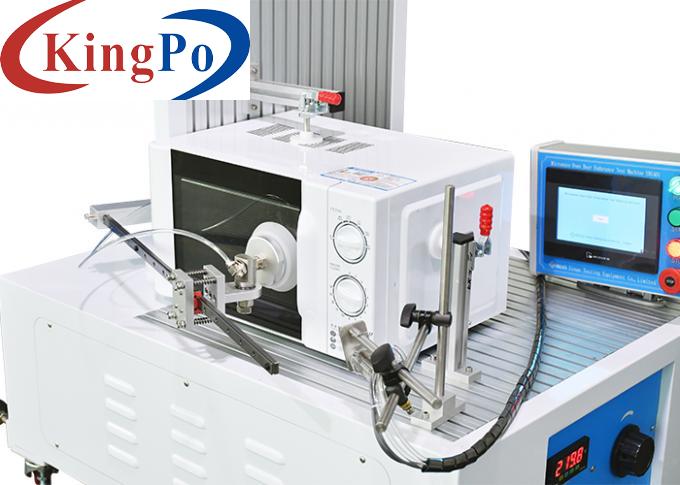

The equipment adopts Mitsubishi PLC and stepper motor control, with all stainless-steel mechanical hand, vacuum suction structure, standard TFT true color LCD touch screen, can preset test angle and speed, simulated a human hand to open and close the door of microwave ovens and similar equipment, achieve intelligent control. The machine frame is made of high-grade aluminum alloy profile, and the mechanical arm is installed on the support of the frame, can satisfy left open and upper open door endurance test of different size. The power supply socket has the function of detecting, which can judge whether the test sample is electrified; during load test, if the test sample is not electrified during the test, the equipment will be automatically shut down.
