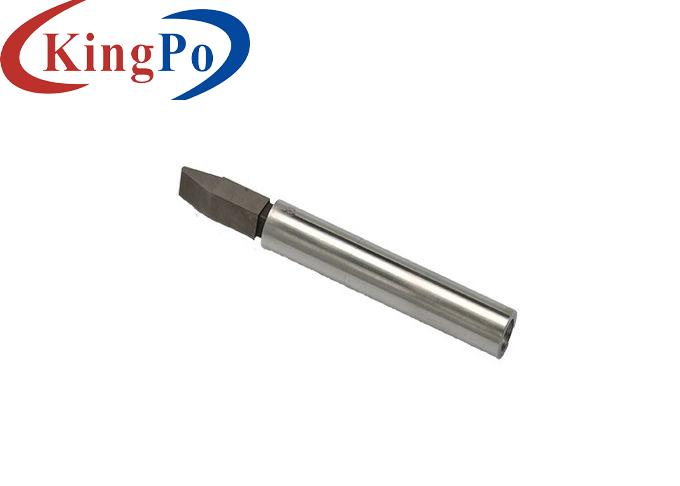

IEC 60335-2 High Quality Scratch Tool SN2210-27 For Home Appliances

Product information:

Standard:IEC60335-2-24 Figure 102.

Application:The scratching tool tip is for home appliances whose accessible element surface of all protected cooling system, including the c accessible element surface that have close contact with a protected cooling system to do the scratch test.

Test sample: Refrigerator and other refrigeration equipment.

Feature:Please use according to related standard.

Parameters:

Operation Steps:

Please refer to IEC 60335-2-24 clause 22.107.2:

All accessible surfaces of protected cooling system components including accessible surfaces in intimate contact with protected cooling systems are scratched using the tool whose tip is shown in Figure 102.

The tool is applied using the following parameters:

- force at right angles to the surface to be tested….………………………….…………35N± 3 N

- force parallel to the surface to be tested……......…..................................................not exceeding 250 N.

The tool is drawn across the surface to be tested at a rate of approximately 1mm/s.

The surface to be tested is scratched at three different positions in a direction at right angles to the axis of the channel and at three different positions on the channel in a direction parallel to it. In the latter case the length of the scratch shall be approximately 50 mm

The scratches shall not cross each other.

The appropriate part of the appliance shall withstand the test of 22.7, the test pressure being reduced by 50%.

Notice:

Please prevent this apparatus from falling to the ground to avoid damage.

Please store it in a dry environment.
