IEC 60335-2 Test Rod For Interlock Concealment Door Of Microwave Oven

Standards For Test Rod For Interlock Concealment:

The test rod meets the standard requirements of IEC60335-2-25 clause 22.105 figure 101, EN61010-1, UL3101-1, UL3111-1 and CSA1010-1, etc.

Technical Parameters For Test Rod For Interlock Concealment:

Samples and Restrictions For Test Rod For Interlock Concealment:

It is used for interlocking apparatus of the concealed door of microwave oven.

Test Procedures and Operation For Test Rod For Interlock Concealment:

The door is placed in the open or closed position and an attempt is made to operate the concealed door interlock by applying test probe B of IEC 61032 to all openings. The test is repeated with a rod, as shown in Figure 101, to any openings of the door interlock mechanism. Only one rod shall be used at a time.

Application For Test Rod For Interlock Concealment:

It is used to check the door interlocks shall be concealed and not operable by manipulation, This door interlock shall operate before any accessible door interlock can be defeated.

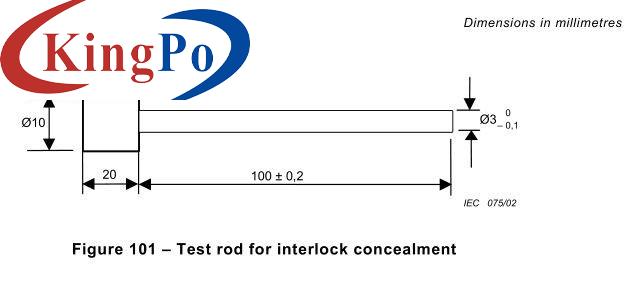

Structure For Test Rod For Interlock Concealment:
