IEC 60335 Glow Wire Flammability And Temperature Test Apparatus With PLC Control

Flammability Test Chamber

Products

MOQ:1
Price:Negotiable
StandardPackaging:Plywood
DeliveryPeriod:30Days
PaymentMethod:T/T
SupplyCapacity:10SetsPerMonth

+86 769 81627526 skype++++ Chat Now

Products Description

Place of Origin：China

Brand Name：KingPo

Certification：Calibration Certificate (Cost Additional)

Model Number：KP772

Power Supply：AC220V±10%, 50/60Hz

Ambient Temperature：10℃～35℃

Relative Humidity：30%～60%

Control Mode：PLC Control

Glow Wire：Ф4mm ± 0.04mm

Moving Speed：10mm /s ～ 25mm /s

Depth Of Sample：7mm ± 0.5mm

Test Sample：0.95N±0.1N

Minimum Order Quantity：1

Price：Negotiable

Packaging Details：Plywood

Delivery Time：30 Days

Payment Terms：T/T

Supply Ability：10 Sets Per Month

Highlight：IEC 60335 Temperature Test Apparatus, PLC Temperature Test Apparatus, Glow Wire Flammability Test Chamber

Product Description

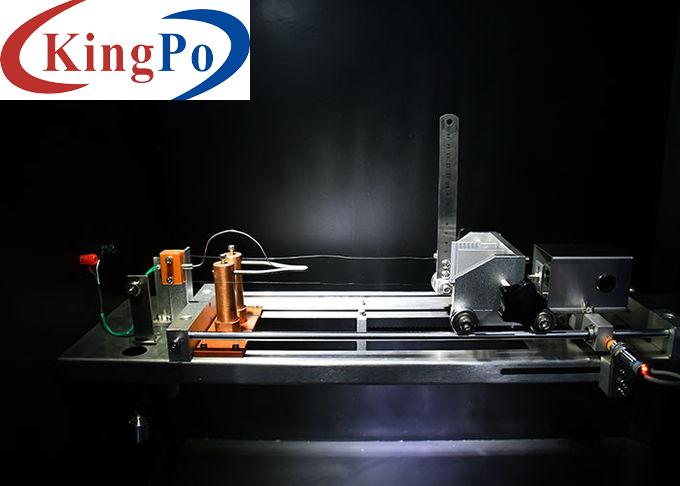

IEC 60335 Glow Wire Flammability And Temperature Test Apparatus With PLC Control

Product overview For Glow Wire Flammability And Temperature Test Apparatus:

This device is manufactured according to the standard of IEC60695-2-10, IEC 60695-2-11, IEC 60695-2-12, IEC60695-2-13, UL746A, IEC 60335, IEC 60598, etc. It also conforms to the standard requirement of UL746A. This device simulates the thermal stress test of glowing component or heat source like overload resistance or ignition source which is caused in s short time. It is suitable for electric and electronic products, household appliances and other material to do fire hazard testing. It is also used in the No flame ignition source fire test to test initiation temperature and flammability index of related glowing filament.

Adopting advanced PLC control, and 7 inch color touch screen, it is with solenoid valve switch to control the burning depth of test sample and equipped with measuring gauge, this device has the features of exact and rapid. The test sample will break away automatically from glowing filament after reaching the set time. Adopting the original imported UK LAB K type armour (1mm) whose temperature resistance is up to 1100°(exceed 1050°of standard requirement) , this device is with accuracy temperature control.

Technical parameters For Glow Wire Flammability And Temperature Test Apparatus:

Control	Advanced Mitsubishi PLC
Display	Wein view 7” color touch screen
Glowing Element	Ф4mm ± 0.04mm Ni/Cr (77/20) special standard ring shape, horizontal standing
Thermocouple	NiCrφ1mm,1mm import K thermocouple (Brand: RS), the temperature resistance of armor is 1100 ℃ (Better than the standard of 1050 ℃)
Temperature Precision	500°C-750°C+10%, 750°C-960°C+10% Temperature fluctuation < 3 ℃
Specimen pressure on glowing filament	0.95N±0.1N (adjustable)
Maximum depth of heating	7mm ± 0.5mm
Specimen movement speed	10mm /s ～ 25mm /s
Testing time	30s±0.1s(1s ～ 999.9s digital display preset )
Thickness of ignite bedding board	Thickness10mm, white pine board cover 12g /m 2 ～ 30g /m 2 standard silk paper
Volume of test site	≥ 0.5m³, black background, background illuminance ≤ 20Lx
Dimension and weight	W: 1100mm × D: 550mm × H: 1200mm, gas vent:100mm, 140KGS
Power	Single phase AC 220V±10% / 50Hz
Standard	IEC60695-2-10, IEC 60695-2-11, IEC 60695-2-12, IEC60695-2-13, UL746A, IEC 60335, IEC 60598, etc.

Test principle For Glow Wire Flammability And Temperature Test Apparatus:

The glowing filament whose material and shape is required(Ni80/Cr20) is heated to the testing temperature of 550 ℃ ～ 960 ℃ for 1 min by using the glow wire tester with large current. Then using required pressure (1.0N) vertically burns the test sample for 30s. By observing whether the test sample and bedding object ignite or the burning time, the users can judge the ignition danger of electric and electronic products. It is used for the ignition test, ignition temperature (GWIT) test, flammability test and flammability index (GWFI) test of solid insulating material and other solid combustible material.
