IEC 60436 Household Dishwashers Energy Efficiency Lab
Products Description
IEC 60436 Dishwasher Performance Test System Energy Efficiency Testing Chamber
System overview:
This dishwashers performance testing laboratory meets the requirements of IEC 60436-2015, EN 50242, AS/NZS2007.1, SASO 2692, etc.
It consists of:
1 test area [size about 5400mm (length) * 4000mm (width) * 2800mm (height)]
1 equipment area [size about 5400mm (length) * 1500mm (width) * 2000mm (height)]

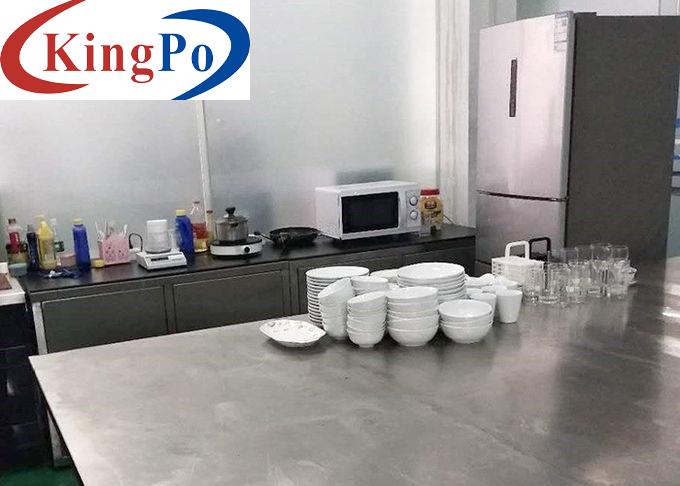

1 Contaminated area [size about 5400mm (length) * 2500mm (width) * 2800mm (height)]
1 data collection area and etc.
Chamber body features:
The interior of the thermal insulation room contains the test area, which is designed to be constant temperature and humidity, air supply and return air outlets, and floor drains. The ground is made of concrete, with drainage channels on the ground and stainless-steel grilles on the top.
The body of the internal test area adopts 75mm polyurethane insulation board structure, and the air supply material of the orifice plate at the top of the laboratory is made of rust-proof aluminum.
Anti-moisture LED lighting in the laboratory to meet the lighting requirements.
The air treatment system is located in the test area.
The test area has a double-opening door with internal opening function.
List of main electrical components:
DZ158LE-125
(Current 100A, 2 poles)
No.:
Material Name
Specification
Brand
Unit
QTY
Remark
1
Monitor
19-inch LCD display, widescreen
PHILIPS
Set
1
2
Industrial Computer
Mainstream configuration (memory 8G, hard disk 500G, with more than 4 of RS232 and RS485 serial ports respectively)
Advantech
Set
1
3
Printer
Set
1
Prepared by client
4
UPS
Input AC220V, output AC220V, power 500W
EAST
Set
1
5
PLC
FP series power supply AC220V
Matsushita
Set
1
6
Backup battery
FP series
Matsushita
Set
1
7
Communication card
FP series
Matsushita
Set
1
8
Function card
FP series
Matsushita
Set
1
9
Analog input module
FP series
Matsushita
Set
1
10
Filter
3A,AC220V
Made in China
Set
1
11
Switching power supply
S-250-24
Made in China
PC
1
12
Leakage protection switch
DZ47LE-32 C16 2P
CHINT
PC
17
13
Leakage protection switch
DZ47LE-32 C32 3P
CHINT
PC
3
14
Leakage protection switch
CHINT
PC
4
15
AC contactor
NC1-12,AC220V
CHINT
PC
4
16
AC contactor
NC1-25,AC220V
CHINT
PC
3
17
Intermediate relay
MY2NJ-DC24V
Omron
PC
20
18
Relay base
PYF08A
Omron
PC
20
19
Relay card
PYP-A1
Omron
PC
40
20
Three-color light
DC24V with buzzer
PC
1
21
Power switch button
￠22mm, with light (AC220V) without lock, green
ONPOW
PC
1
22
power switch button
￠22mm, without light and without lock, red
ONPOW
PC
1
23
Emergency stop switch
￠22mm, red
ONPOW
PC
1
24
Glass insurance tube
5A with base
Set
2
25
Socket
Five-hole universal socket, 10A
BULL
Set
16
26
Socket
Five-hole universal socket, 16A
BULL
Set
4
27
Electrical parameter table
8718C/WT310
Qingzhi/ Yokogawa
Set
4
28
Temperature inspection instrument
Panel mounting, thermocouple input above 10 channels, accuracy ±0.5℃. RS-485 communication interface with Modbus-RTU protocol
Made in China
PC
4
29
Water hardness tester
Measuring range: 0～1000.0mg/L, accuracy 5%, online test (with Modbus-RTU protocol RS-485 communication interface)
Made in China
PC
1
30
Electromagnetic Flowmeter
Measuring range: 0～20L/min, accuracy ±1%, with Modbus-RTU protocol RS-485 communication interface
FISCHER
PC
4
31
Pressure Sensor
Measuring range: 0～1.5MPa, accuracy ±0.5%, output signal DC4-20mA
Setra
PC
3
32
Frequency Power
10kW (three-phase input, single-phase output, output voltage: AC0-300V adjustable, frequency 45-64Hz adjustable)
Ainuo
Set
2
33
Explosion-proof lights
AC 220V, 60W and above
Made in China
Set
6
34
Solid state relay
Input DC voltage, output AC380V, rated current 45A
Ynagming
Set
1
