IEC 60598-1 Clause 4.14.3 LED Lighting Adjustment Test Equipment
Products Description

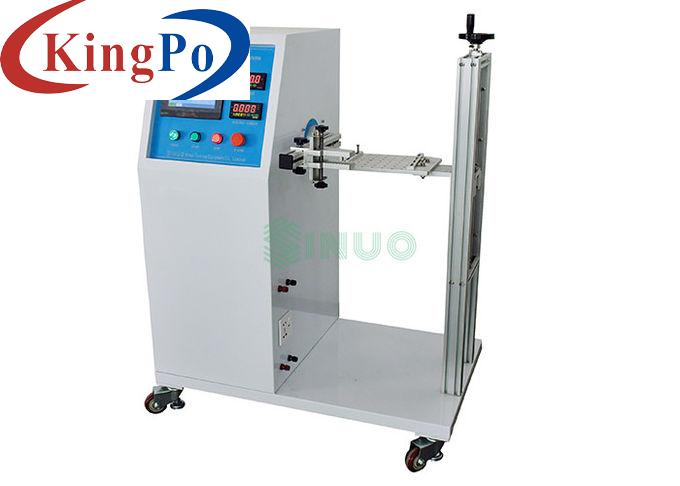

IEC 60598-1 Clause 4.14.3 LED Lighting Adjustment Test Equipment
Product Information:
This lighting adjustment test equipment matches the requirements of clause 4.14.3 of IEC 60598-1, mainly used for the lamp adjustment device’s torsion, and bending test of the table lamps, floor lamps and the lamps which are for professional use (such as a plotter lamps).
Equipment Structure
The test equipment is coming with integrated PLC & touch screen, motor drive bending mechanism, sample installation platform. The bending angles, test speed and test cycle can be set on touch screen. Once the test is completed or failed, the test equipment will give out signal.
Technical Parameters:
Power Supply
AC220V, 50HZ
Bending /Rotation Angle
0~360° (or 0~±180°) can be preset on touch screen
Test Speed
0 to 60 times / min, can be preset
Test Cycles
1~999999 can be preset
Electrical Control
PLC & 7” touch screen
Drive Mode
Stepper motor
Operation Mode
Intelligent touch screen control (7 inches)
Rotation Center Height
1200mm
Platform Liftable Stroke
0-1000mm, manually adjustable by rotating the hand wheel
Maximum Radius of Gyration of the Rotating Fixture
R500mm
Test Station
One station
