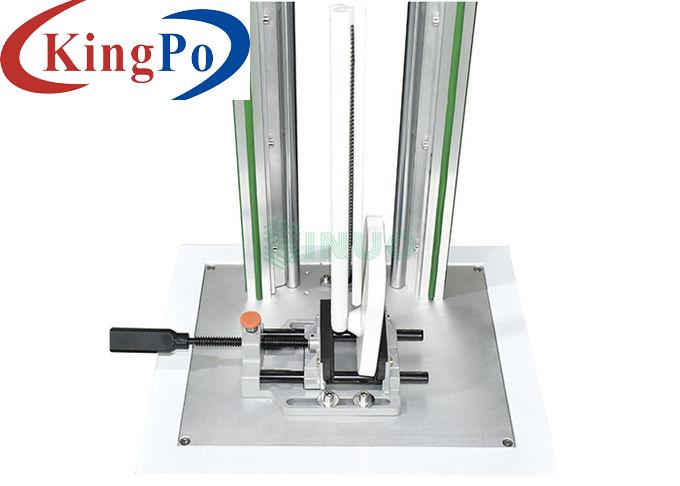

IEC 60598-1 Electric Drop Impact Test Device For Steel Balls For Equipment Enclosure
Products Description
IEC 60598-1 Electric Drop Impact Test Device For Steel Balls For Equipment Enclosure.
Product Information:
Standard: Complies with IEC 60598.1, IEC 60950-1: 2013 Article 4.2.5, IEC 60065: 2014 Article 12.1.4 Figure 8, 12.7.3.5 etc.
Usage: The equipment is suitable for drop impact test of equipment shell.
Test Samples: Lamps, Audio, Video and Similar Electronic Equipment, Information Technology Equipment
Features: The equipment can be used for vertical drop and swing impact test in two forms.
Technical Parameters:
Applied standard
IEC60598.1, IEC60950.1 and etc.
Impact steel ball
Diameter 50mm±1mm, 500±25g
Impact method
Vertical impact and horizontal impact methods can be switched
Drop height
0.5-1.5m adjustable
Lift mode
Electromotion
Way of releasing
Electronic control:
The ball is attracted and released by an electromagnet, and the action can be controlled by a remote control.
Power supply
220V, 50Hz
