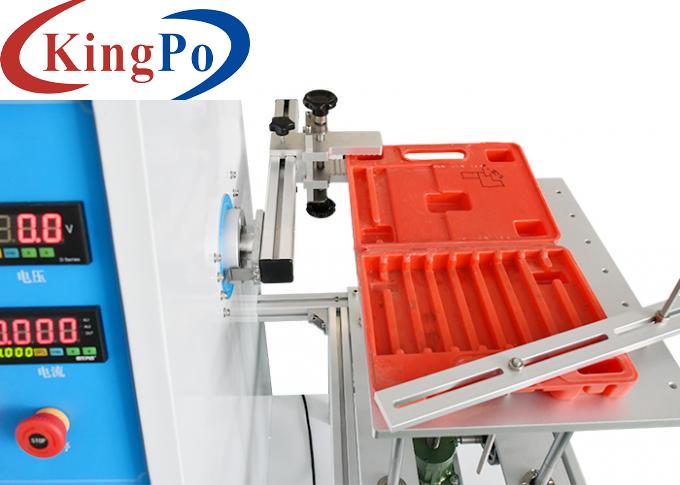

IEC 60598-1 Internal Power Cord Bending Test Equipment For Power Cord Of Household Appliances

Product Information For Internal Power Cord Bending Test Equipment:

This flexibility test equipment matches the requirements of clause 23 of IEC 60335-1. It is used to conduct flexing resistance test on the electrical connections and internal wires of different parts of the appliance that can move with each other in normal use or during user maintenance.

Sample: Electrical appliances that need to move relative to each other during work (such as curling irons)
Test purpose: It is used to test the bending resistance of different parts of electrical appliances that need to move relatively during work, and to verify its reliability
Test principle: Use the motor to drive the mechanical arm to rotate, pass the rated voltage to the sample, so that the sample can bend left and right to the fixed end at a certain speed and angle, and automatically stop when the number of times is reached or the wire breaks without a signal
Equipment structure: The equipment is driven by a servo motor, can lift the tray to fix the sample, and has a floor-standing structure.
Equipment dimensions: about: 900×600×1300 (mm) W×H×D, equipment weight: 130kg
Operating environment: Power supply: AC220V±10%/50-60Hz, power 0.3KW


Technical arameters For Internal Power Cord Bending Test Equipment:
